Larger Cyprus properties need bigger pumps. A commercial farm running a full hectare of drip irrigation. A small hotel with a pool and full guest occupancy. Four or five neighbouring houses on one shared borehole. A big greenhouse operation. Anything with real capacity demand.
In every one of these cases, the Hybsun 4US1300-60-10D DC solar well pump is engineered to fit. Substantially larger than domestic pumps, still well below industrial scale — and, because there’s no electricity to buy, cheaper to run than any of them. It moves up to 10 m³ of water per hour, reaches down as far as 60 metres, and needs 1,300 watts of solar power to run at full output. Made from stainless steel to survive Cyprus water conditions. Powered straight by solar panels. A free spare parts kit is included.
✓ VAT included · Delivery in Cyprus
What It Is
The Hybsun 4US series covers the whole DC solar-direct bracket in the 4-inch body — from small hobby-scale up to this 1,300 W higher-capacity model.
Larger rural family homes, small guesthouses, small hotels, shared rural boreholes, small farms, orchards, greenhouse supply, and small off-grid commercial sources. The depth range of 5 to 60 metres covers most Cyprus rural boreholes across every district, with flow measured in cubic metres per hour.
The Hybsun 4US1300-60-10D DC solar well pump is the 1.3 kW higher-capacity model. Peak flow of 10 m³/h near the surface, top vertical reach of 60 metres, and a 2-inch outlet that feeds larger distribution runs — drip mains, tank inlets, and property-wide plumbing without pressure loss.
Power comes from a 1,300 W motor running at 96 V DC nominal, drawing energy from the solar array through the matched controller.
Stainless Steel Construction
The Hybsun 4US1300-60-10D DC solar well pump is built from stainless steel from the impeller to the outer housing. At this power level and daily running time, material choice sets the working life of the pump — and stainless is what keeps it going for a decade or more in Cyprus water conditions.
Cyprus rural water rarely arrives spotless. Fine silt, sand, mineral load, and hard-water precipitates come as standard. In coastal-adjacent areas — especially Famagusta and eastern Larnaca — chloride content also rises during dry summers as seawater intrudes into shallow aquifers.
On top of the mineral content in the raw borehole water, irrigation lines commonly pick up dissolved fertiliser residues and organic matter along the way from storage ponds and holding tanks.
Stainless steel copes with all of that without breaking down.

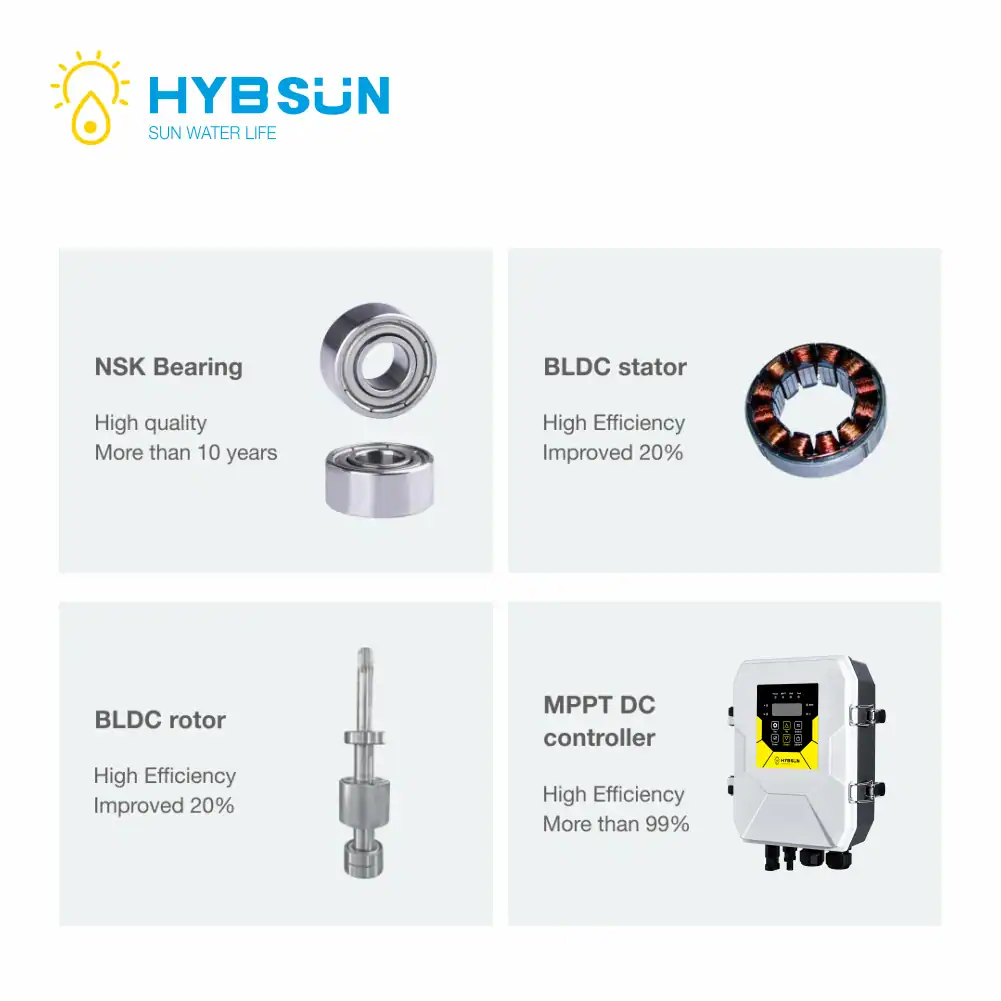

The Hybsun 4US1300-60-10D DC solar well pump uses a brushless permanent-magnet synchronous motor — 1,300 W rated at 96 V DC nominal. No brushes means nothing wears out and nothing to replace. Permanent magnets deliver high efficiency across changing solar output — the motor tracks sunlight strength without losing torque.
The motor is sealed inside the pump housing and cooled by pumped water flowing past it. It runs directly from your solar array through the matched controller — no inverter, no batteries, no conversion losses.
Fits standard 4-inch (DN100) boreholes and larger — the common size across Cyprus rural drilling.

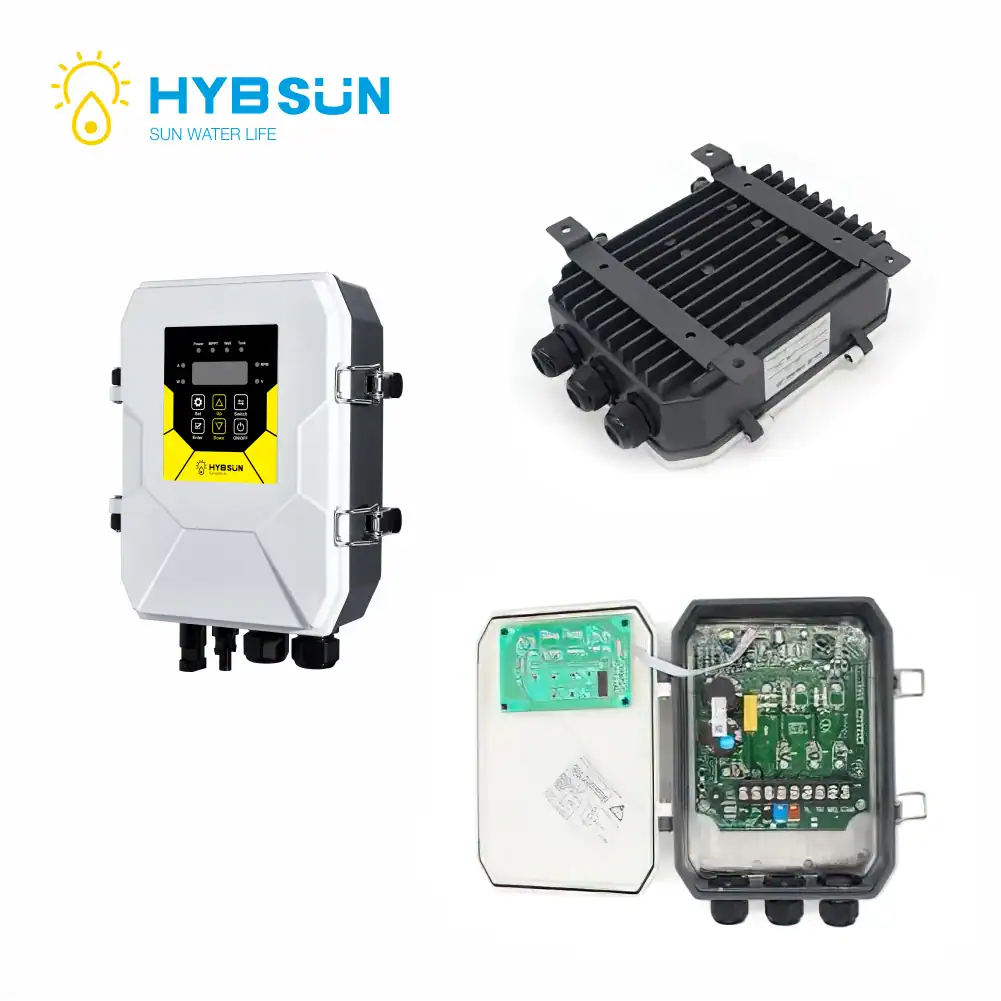

Every Hybsun 4US1300-60/10D DC solar well pump ships with the matched solar controller included in the box — a wall-mount unit that sits between your solar panels above ground and the pump cable running down into the well.
Electrically, the controller sits between the array and the pump cable. It draws DC energy from the panels, continuously tracks the point where their output is peaking (MPP tracking), and passes that energy through to the motor.
The Hybsun 4US1300-60/10D DC solar well pump controller does three main jobs. It squeezes the most energy out of the panels as sunlight changes through the day. It regulates the motor speed. And it shuts the pump down if the well runs dry, so nothing gets damaged. It mounts at the wellhead or in a small enclosure nearby.
The controller ships pre-configured to work with the Hybsun 4US1300-60-10D DC solar well pump — no on-site setup required.
The most efficient way to run a small solar pump is straight-through. Panels generate DC. The motor accepts DC directly. The controller manages the interface between them.
This suits the Hybsun 4US1300-60/10D DC solar well pump in Cyprus farming context. Water demand mostly follows daylight — crops get irrigated by day, livestock drink by day, and tanks fill up during the day for use at night. The pump runs while the sun shines. After dark, the system rests.
Soft start (no inrush damage to the motor), over-voltage, under-voltage, over-current, high-temperature and adjustable speed (frequency conversion). For wells that occasionally run dry, the auto-restart is particularly useful — the pump checks again 30 minutes later instead of needing a manual reset.
Unboxing & First Look

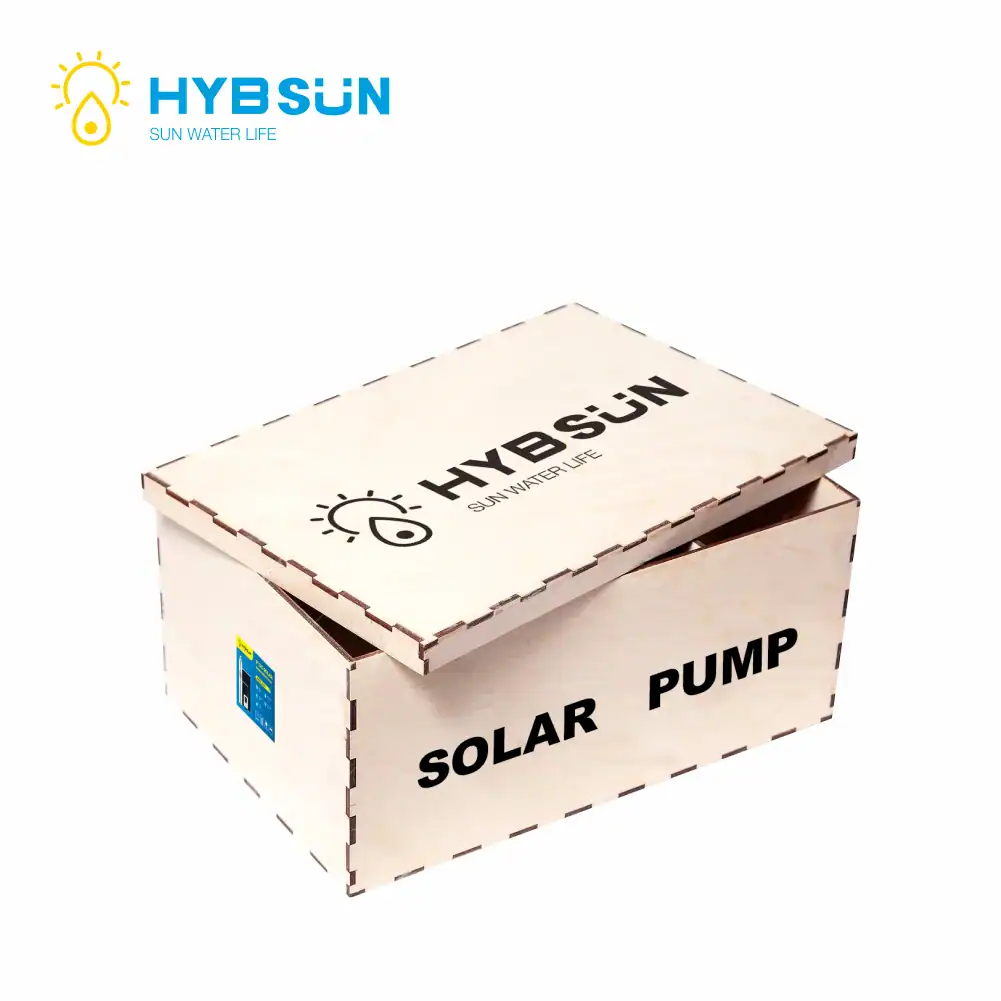

The Hybsun 4US1300-60-10D DC solar well pump kit is in a wooden box with the pump, the DC solar controller, and accessories. Here’s an unboxing walkthrough showing what’s in the box and how the kit goes together:
Video by Hybsun showing the standard submersible solar well pump kit. The Hybsun 4US1300-60-10D DC solar well pump ships in the same kit format with its model-specific pump.
Who Should Buy This
The Hybsun 4US1300-60-10D DC solar well pump is the higher-capacity DC solar pump in the 4US range. If any of these fits, it’s likely the right pump:
Hybsun makes several other solar pump models suited to different operating profiles. If the Hybsun 4US1300-60-10D DC solar well pump doesn’t match your project, one of these siblings probably does:
Hybsun specifies the minimum array as 1.3 times the pump’s rated power.
For the 4US1300-60/10D (a 1,300 W pump), that’s a minimum of 1,690 Wp — about 5 standard 400 W panels. Most real-world installs go higher, to 2,000-2,600 Wp (5-7 panels). The extra headroom covers summer heat losses (panels de-rate 10-15% in high heat), dust buildup between cleanings, and gradual panel aging over the 25-30 year service life.

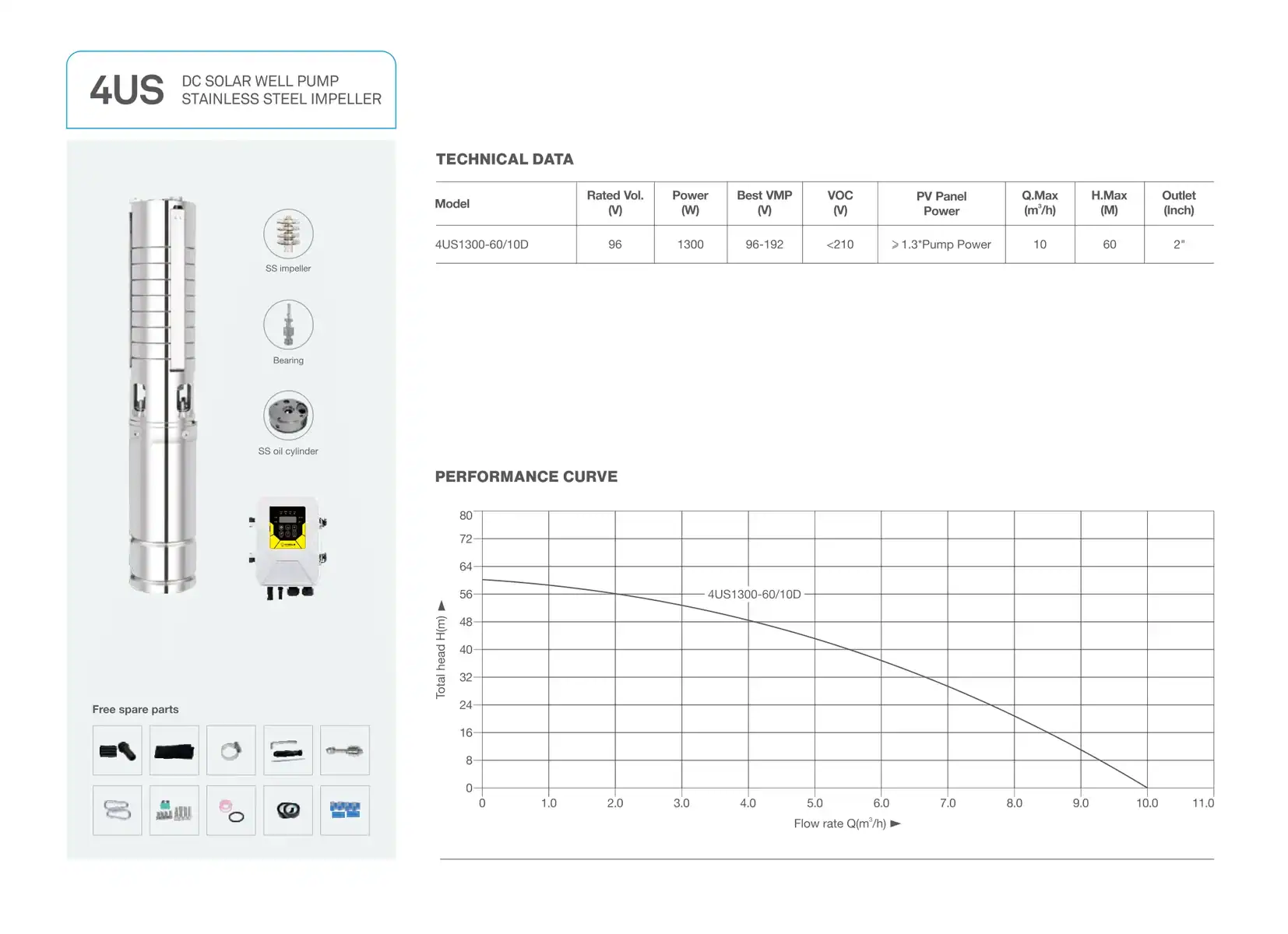

The flow range for this pump goes from a peak of 10 m³/h close to the surface, down to zero flow at the 60 m ceiling. The table below lists the actual working flow at each standard operating depth — every value taken directly from Hybsun’s published data.
“Total dynamic head” is the sum of static water level depth, pipe friction losses, and vertical climb up to your discharge tank. Friction along the rising main normally adds 5-10 metres to the effective head — the actual figure varies with pipe diameter, run length, and fitting count.
What that flow envelope translates into for typical Cyprus agricultural and surface-water applications:
For a precise sizing check, share with CGP Solar your static water level, daily volume required, and target tank height or distribution point — we’ll confirm the Hybsun 4US1300-60-10D DC solar well pump lands on your operating point, or point you at a different Hybsun model if a better fit exists.
Cheaper pumps this size still ship with plastic impellers — fine for clean water, hopeless against sand, fertiliser residue, or coastal-adjacent salt. The Hybsun 4US1300-60-10D DC solar well pump uses stainless steel throughout. It handles Cyprus water across every district.
Uses standard 400 W solar panels. Wire 3 or 4 in series into the controller.

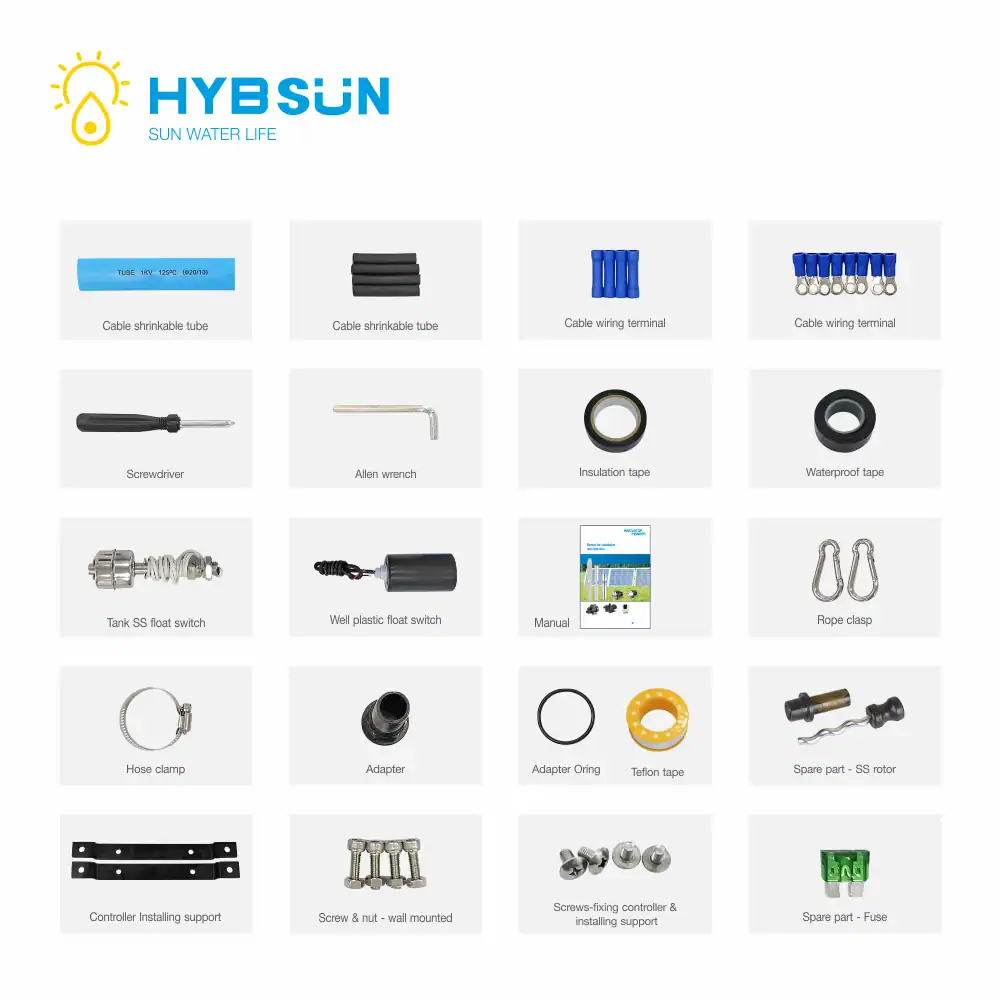

Free spare parts kit included — seals, washers, bushings, brushes. Ready in your workshop for when something eventually wears out.
Protection is inside the controller — nothing to configure. If the well drops below the pump, power cuts. If panel voltage spikes on a cold morning, cut. If wiring is wrong at startup, no power flows. And when the well water recovers, the pump restarts on its own.
Grid pumps take a current burst at every startup. Over years of on/off cycling, that’s what kills them. A solar-direct pump avoids all of it — motor speed rises smoothly with the sun and drops as it sets.
By August or September of a dry year, Cyprus well levels can drop below the pump intake. Without protection, the motor would overheat and fail within minutes (motors need water flow past them to stay cool). The controller detects flow stopping, cuts power, and retries until water returns. You don’t lose the pump.
A Hybsun 4US1300-60-10D DC solar well pump install normally runs 2-3 working days end to end. Simple solar-direct wiring and small deployment depth make this a much faster job than a larger hybrid or commercial pump project.
Stage 1 — site visit (1 day). We measure well depth and water level, estimate likely drawdown, check the borehole diameter and casing condition, map the pipe run up to your tank, and choose a panel mounting location (ground mount, rooftop, or fence line) with strong day-long sun.
Stage 2 — quote and ordering (3-5 days). We work out the array size against your daily water demand and available budget, spec the pipes, design the controller mounting and wiring layout, then verify pump stock and place the order.
Stage 3 — installation (1-2 days on site). Dropping the pump into the borehole is roughly half a day of work. Panel mounting and array installation runs from half a day to a full day, scaling with array size. Wiring the controller and commissioning the entire installation takes a couple of hours.
CGP Solar handles the whole job across Nicosia, Limassol, Paphos, Larnaca, and the Famagusta region.
CGP Solar supplies and installs the Hybsun 4US1300-60-10D DC solar well pump in every Cyprus district — for small vegetable plots, half-hectare orchards, small greenhouse operations, and small livestock setups wherever the borehole sits within the 60 m maximum head.
CGP Solar handles the whole install — site visit, sizing, panel design, pipework, pump lowering, controller wiring, startup, and handover walkthrough.
Cyprus is one of the sunniest countries in Europe. Paired with a properly-sized solar array, the Hybsun 4US1300-60-10D DC solar well pump delivers 40-52 m³ of water per day — year after year, with zero electricity bill and zero fuel cost.
Contact us today to schedule your personalised free consultation.
FAQ’s
Peak 10 m³/h near zero lift, dropping with depth. 8 m: ~9.3 m³/h. 20 m: ~8. 30 m: ~6.9. 40 m: ~5.5. 50 m: ~3.7. 60 m: zero. Match against your real total head (water depth + pipe losses + tank height), not the peak.
No — this is a solar-only pump. If you want to use solar during the day and switch to grid power at night or on cloudy days, take a look at the Hybsun 4USH1300-125-6F is the closer match.
The controller comes with dry-run protection as standard. If the water level in your well drops below the pump and water stops flowing, the controller cuts power to the motor right away — before anything gets damaged. It waits a bit, then tries again. It keeps trying until water comes back. Cyprus wells often draw down when demand peaks in July and August. This protection is what lets the pump sit there running all summer without you needing to watch it. When the water level recovers, the pump picks back up on its own.
Standard 2-year manufacturer warranty from Hybsun on the pump itself. The Hybsun 4US750-45/7.5B DC solar well pump carries CE conformity for EU/Cyprus sale, and Hybsun’s manufacturing facility holds ISO 9001:2015 certification. The DC hybrid controller is IP65-rated — dust-tight and pressurized-water-jet protected — appropriate for outdoor mounting at exposed mountain wellhead locations, or inside a pump shed at agricultural and resort sites.
