Some Cyprus wells go really deep. In the Troodos foothills, the Pitsilia villages, the Akamas uplands, and across mountain-region properties, water tables can sit 100 to 180 metres below the surface — sometimes deeper.
The Hybsun 4USH2200-210-11H hybrid solar well pump is engineered specifically for these deep bedrock wells. 2,200 W of power. Reaches down to 210 metres — one of the deepest single-source solar pumps you can buy in this power class. Delivers 5 m³/h at the rated 100 m depth, up to 11 m³/h at very shallow lifts. The 4-inch body slides into a standard DN100 borehole — no special drilling required. It runs on solar panels during the day, then switches automatically to AC mains after dark. No user action needed.
Built from stainless steel. Free spare parts kit included.
✓ VAT included · Delivery in Cyprus
What It Is
The Hybsun 4USH2200-210-11H hybrid solar well pump is the deep-well specialist in the 4USH series. Where other pumps run out of head, this one keeps pushing. It reaches down to 210 metres in a standard 4-inch borehole — a combination that most solar pumps simply can’t offer.
Typical Cyprus uses include mountain-region bedrock wells, Troodos foothill properties, Pitsilia village supply, Akamas uplands, and any hillside property where the water table sits 100 metres or more below the surface. The pump still uses standard single-phase 90-300 V AC input — no three-phase electrical service required, even at this depth.
Key working numbers for the Hybsun 4USH2200-210-11H hybrid solar well pump:
Peak flow reaches 11 m³/h at almost zero lift. Maximum vertical reach is 210 metres. The rated operating point sits at 5 m³/h with 100 m of head — this is the sweet spot the pump is designed to work at. The outlet is 2-inch, and the motor is 2,200 W, running on either solar panels or standard AC mains. The controller switches between solar and mains automatically. No user action needed.
For Cyprus buyers, this pump serves the areas that other pumps can’t reach — the deep bedrock wells of the Troodos foothills, Pitsilia villages, Akamas uplands, and mountain-region properties across the island.
Stainless Steel Construction
The Hybsun 4USH2200-210-11H hybrid solar well pump is made from stainless steel.
This matters more than it might sound, especially at the very high pressures a 210 m deep-well pump generates.
Deep bedrock wells produce their own kind of water. At 100-180 metres depth, the aquifer chemistry is very different from shallow surface water — much higher mineral load, dissolved calcium and magnesium from the surrounding rock, sometimes iron and manganese.
Troodos and Pitsilia bedrock in particular carries mineral-rich water at these depths.
At the rated 100 m operating point, the Hybsun 4USH2200-210-11H hybrid solar well pump works against roughly 10 bar of pressure plus the flow itself. That’s an extremely demanding load for the impeller and seals.
Every part in the rotating assembly works significantly harder at this depth than in a shallow-well setup.
Stainless steel handles the chemistry and the pressure without wearing down.
Lower-cost pumps often ship with plastic impellers — those wear away faster once suspended particles and mineral scale start doing their work. Multi-metal builds corrode sooner in water carrying a heavy mineral load.
Stainless steel holds up across multiple seasons — which is why the Hybsun 4USH2200-210-11H hybrid solar well pump is built with it.
Cheap housings start seeping over time. A stainless housing with good seals doesn’t give you that trouble.
The Hybsun 4USH2200-210-11H hybrid solar well pump uses a 2,200 W motor.
It accepts either DC power from a solar panel array or AC power from the mains — through the same matched controller.
Why this matters in real use:
Sunlight goes straight from panel to pump through the controller. No conversion back and forth to AC, which means no wasted energy on that path. When night comes or thick cloud cover, the controller picks up from mains — grid supply or a farm hookup, whichever you have. It happens on its own, no toggle to flip.
The pump uses its own throughput water to keep the motor cool, so it needs to stay under water the whole time it’s running.
If the well ever draws down past the intake, the controller’s dry-run protection cuts power right away — no risk of a burned-out motor.
The Hybsun 4USH2200-210-11H hybrid solar well pump is a 4-inch series model. It fits inside boreholes of 4-inch (DN100) diameter or larger — the standard size for Cyprus deep bedrock wells.

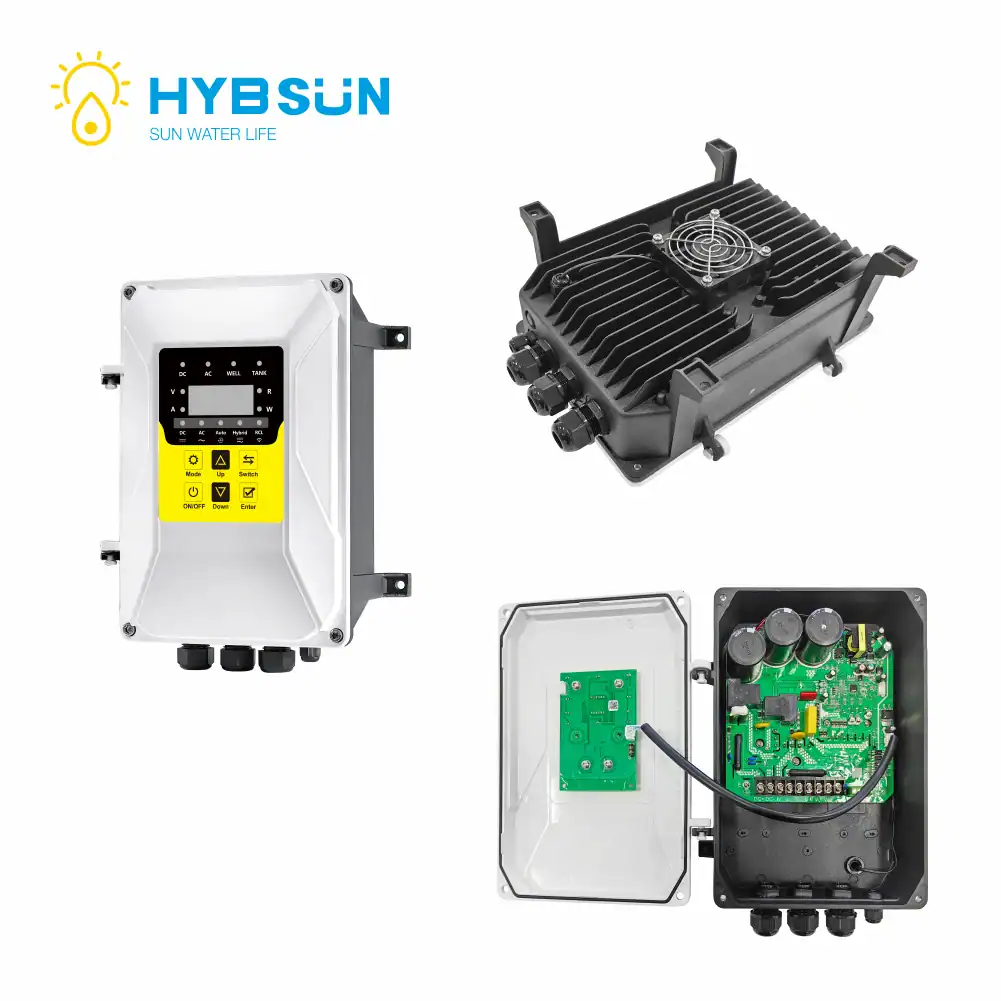

The Hybsun 4USH2200-210-11H hybrid solar well pump ships with its matched AC/DC hybrid controller — a wall-mountable unit sitting between your panels, the AC mains, and the pump.
The controller on the Hybsun 4USH2200-210-11H hybrid solar well pump does two main jobs.
DC side: takes power from the solar panels, tracks the point where the array delivers the most output (MPP tracking), and passes it to the motor.
AC side: accepts mains input for night operation or backup.
Specific voltage numbers are in the panel sizing section further down.
The controller switches sources automatically:
No manual switch, ever.
The unit arrives already tuned to this specific pump model. No settings to dial in on site, no wondering if things will talk to each other.
Panels in, mains in, pump cable in, power on. That’s the whole install on the electrical side.
Solar-only pumps work — but only when the sun is up. Grid-only pumps work too — but you pay for every kWh.
The Hybsun 4USH2200-210-11H hybrid solar well pump gives you both, in one unit.
During the day, the pump runs on solar. You pay nothing for that energy. When you need water at night — or during heavy overcast — the mains takes over automatically. No batteries needed to bridge the gap. Your mains supply already does that job.
A battery-backed off-grid setup would need 8-15 kWh of storage for night operation — that’s €2,500-€6,000 in batteries alone.
The hybrid design skips all of that. Use the mains you already have.
The real-world split for a typical Cyprus install:
Your electricity bill drops by roughly the same proportion versus a mains-only pump.
Cyprus averages 2,800-3,000 hours of sunshine per year — one of the highest in the EU — so the solar side pulls its weight.
Soft start (no inrush current damage to the motor), dry-run protection (pump stops if there’s no water, auto-restarts 30 minutes later), over-voltage, under-voltage, over-current, overload, phase-loss, high working temperature protection, and adjustable speed (frequency conversion). The controller automatically starts and stops the pump based on solar conditions. For boreholes subject to occasional dry-out, the automated retry function removes the manual reset trip — the pump tests the well itself every 30 minutes.
Unboxing & First Look

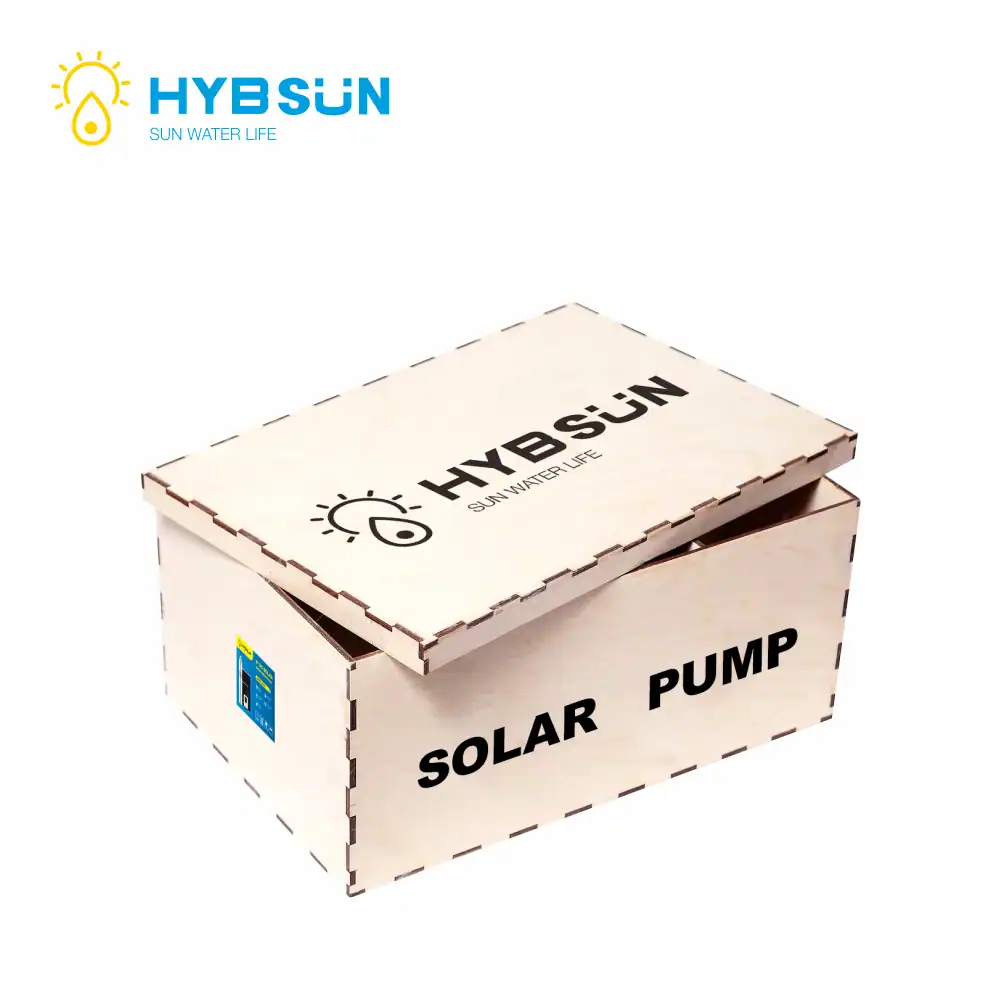

The Hybsun 4USH AC/DC submersible solar well pump kit is in a wooden box with the pump, the DC solar controller, and accessories. Here’s an unboxing walkthrough showing what’s in the box and how the kit goes together:
Video by Hybsun showing the standard submersible solar well pump kit. The Hybsun 4USH2200-210-11H hybrid solar well pump ships in the same kit format with its model-specific pump.
Who Should Buy This
The Hybsun 4USH2200-210-11H hybrid solar well pump matches Cyprus deep bedrock wells and mountain-region properties.
If your project fits one of these profiles, this is likely the right pump:
Hybsun makes several other pump models for different operating profiles. If the Hybsun 4USH2200-210-11H hybrid solar well pump doesn’t match your project, one of these might:
Hybsun sets the minimum solar panel array at 1.3 × the pump’s power rating.
For the Hybsun 4USH2200-210-11H hybrid solar well pump (a 2,200 W pump), that’s a minimum of 2,860 Wp — about 7-8 standard 400 W panels.
Most real installs go higher, to 3,600-4,800 Wp (9-12 panels).
The extra panels give you margin against summer heat losses — panels typically lose 10-15% output in high heat. They also cover dust buildup between cleanings, and gradual panel aging across the 20-25 year service life.

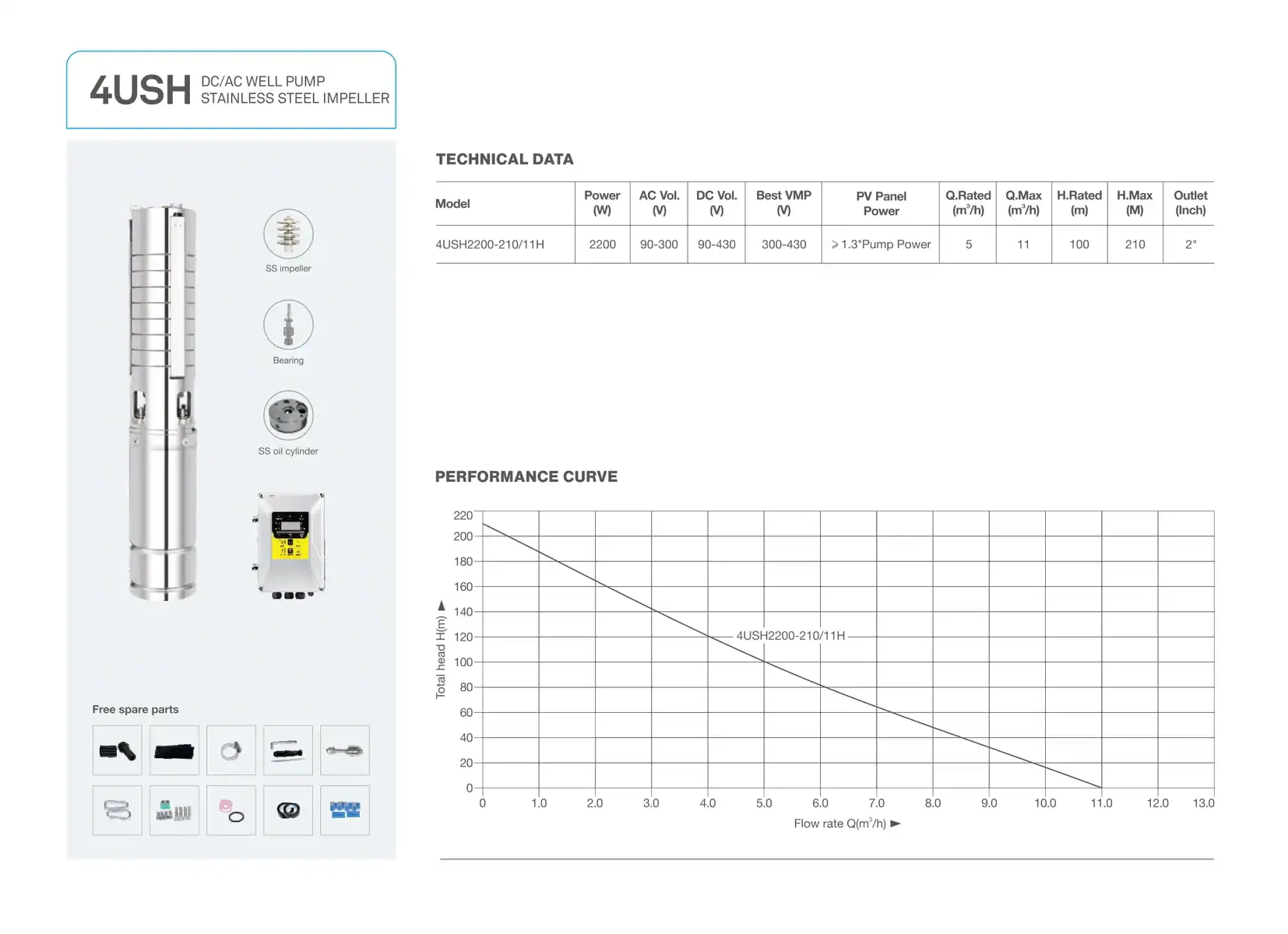

The table below shows the working flow the pump delivers at standard depth intervals, straight from Hybsun’s published spec figures.
Total dynamic head” = static water level depth + pipe friction losses + vertical rise to your discharge tank. Pipe friction in the rising main adds roughly 5-10m to the effective head — the exact figure depends on pipe diameter, total run length, and number of fittings.
In typical Cyprus mountain-region use, that flow envelope means:
For an exact sizing calculation, send CGP Solar your water level, expected drawdown, daily volume need, and any climb to storage. We’ll confirm the Hybsun 4USH2200-210-11H hybrid solar well pump is the right fit — or recommend a better-matching model from the Hybsun range.
1. Stainless steel construction.
A lot of low-cost solar pumps use plastic impellers as a cost-saver. They do the job — as long as the water stays free of sand, organic bits, or dissolved salts.
The Hybsun 4USH2200-210-11H hybrid solar well pump is built from stainless steel.
In the real Cyprus environment — high mineral water, farm chemistry drifting through the year — stainless keeps its performance across many seasons of use.
2. Works with standard equipment.
The voltage window on the controller is set up to accept common 8-9 panel strings assembled from standard 400 W modules.
The 90-300 V AC input covers Cyprus household mains just fine, so you don’t need any special electrical hookup.
Buy panels locally, connect them to the controller, hook up the mains, and get pumping.
3. Free spare parts kit included.

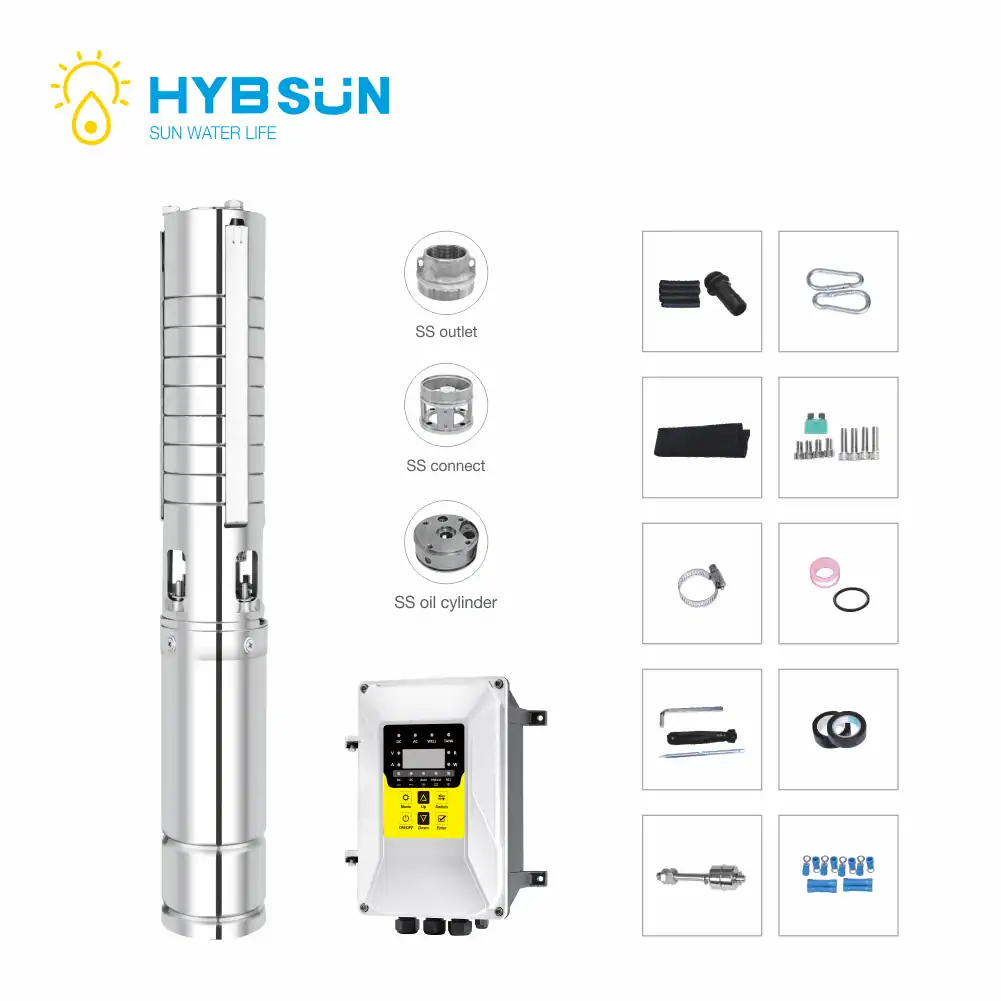

Every Hybsun 4USH2200-210-11H hybrid solar well pump ships with a full spares package — the small wear parts (seals, washers, bushings, brushes) that eventually need replacing after years of duty.
That keeps you from having to place a separate parts order later on.
The controller looks after protection automatically, without you having to set anything up:
After a dry-run cutoff the controller retries the pump automatically when the water level recovers — no reset needed on your part.
This matters more than it might sound.
Every start on a conventional pump means a current spike, a shock passing through the impeller, and faster wear on the bearings and seals.
The Hybsun 4USH2200-210-11H hybrid solar well pump avoids that by design.
Motor speed rises with the sun and drops as it sets. The switch across to mains is routed through the same soft-start ramp — nothing goes straight to the motor abruptly.
There are no sharp power surges and no jolts to the pump itself.
Deep bedrock Cyprus wells have their own recovery pattern.
They reach into deep fissure-water zones — reliable in volume, but slow to recover once pumping has drawn them down.
Through July and August, when household and small-farm demand climbs, extended pumping can pull the water level below the pump intake — most likely during a dry summer.
The controller on the Hybsun 4USH2200-210-11H hybrid solar well pump monitors operating conditions continuously.
The moment the intake stops seeing water, motor power is cut.
After that the controller re-attempts the pump on a timed cycle, waiting for the water level to come back up.
Installing the Hybsun 4USH2200-210-11H hybrid solar well pump takes 4-6 working days from start to finish.
The deep-well deployment plus wiring in both a solar path and a mains path takes a bit longer than a simple shallow-well solar setup would. But it’s still much faster than larger industrial installs.
Stage 1 — site visit (1 day)
We take measurements of well depth, water level, and expected summer drawdown, and we inspect the borehole diameter and casing condition.
We confirm your AC mains is compatible with the controller — standard 230 V Cyprus mains falls neatly inside its 90-300 V input range, no special electrical upgrade required.
Then we work out the pipe run up to your tank and find a panel location that gets solid sun through the whole day.
Stage 2 — quote & ordering (3-5 days)
We calculate the panel array size based on your daily demand and budget, then specify the rising main pipe.
We plan where the controller will be mounted and design the dual-source wiring — one line from solar, one from the mains.
Once that’s agreed, we verify pump stock and place the order.
Stage 3 — installation (1-2 days on site)
Lowering the pump into the borehole and joining the rising main, then is panel mounting and finishing the array — how long depends on how big the array is.
After wiring the controller, connecting both the solar array and the AC mains to it, and testing under each power source in turn to verify correct operation.
CGP Solar handles the whole job across Nicosia, Limassol, Paphos, Larnaca, and the Famagusta region.
CGP Solar supplies and installs the Hybsun 4USH2200-210-11H hybrid solar well pump across every Cyprus district.
It fits mountain village supply, hillside residential properties, small livestock operations, and deep-well irrigation — anywhere the well sits within the 210 m maximum head range.
What we handle for you end-to-end:
Our process starts on-site with well measurement, then a sizing calculation tuned to your daily demand and the pump’s rated well depth.
We manage the panel array design and mounting, the rising-main sizing, the pump’s deployment down the borehole, and the dual-source controller wiring and startup.
We wrap up with a full walkthrough so you understand exactly how the finished system operates.
Cyprus sunshine + solar panels + AC mains backup + the Hybsun 4USH2200-210-11H hybrid solar well pump = up to 30-55 m³ of water per day from your deep bedrock well. Year after year. With 70-85% off your electricity bill. No fuel cost.
Contact us today to schedule your personalised free consultation.
FAQ’s
Peak flow is 11 m³/h at almost zero lift. Flow drops gradually as the pump works against more depth.
At 40 m head you get around 8.5 m³/h. At 80 m it drops to about 6 m³/h. At the rated point of 100 m the flow is 5 m³/h. At 140 m it is about 3.1 m³/h. At 180 m it falls to around 1.4 m³/h. At the 210 m maximum head, flow reaches zero.
Pick the pump by your actual total head (well depth + pipe losses + tank height) — not by the top figure on the box.
No. The Hybsun 4USH2200-210-11H hybrid solar well pump uses a wide-range AC input from 90 to 300 V.
That covers standard Cyprus single-phase household mains (230 V) — no special EAC service upgrade required.
If you need a larger commercial three-phase pump, see the 4GPH range.
The minimum is 2,860 Wp — that’s 7-8 standard 400 W panels.
Most real installs use 3,600-4,800 Wp (9-12 panels) for extra margin against summer heat losses and dust buildup.
Wire them as 8-panel strings — that lands comfortably inside the controller’s 300-430 V working range.
The Hybsun 4USH2200-210-11H hybrid solar well pump has built-in dry-run protection.
If the well level drops below the pump and water flow stops, the controller cuts power before anything is damaged.
It then tries to restart on a timed cycle until the water level recovers.
Deep bedrock wells in mountain-region Cyprus often see summer drawdown as demand peaks — this protection is what makes unattended summer operation possible.
Daily output depends on your total head and the split between solar and mains hours.
At the rated 100 m head, working flow is around 5 m³/h.
Running on solar alone for 6 hours a day gives you about 30 m³/day. Adding 3-5 hours of AC mains for peak demand brings that up to 45-55 m³/day.
At shallower heads (around 60 m), daily solar output climbs to about 42 m³/day.
Yes — automatically and continuously.
The controller monitors both power inputs. When there is enough sunlight to run the pump, it draws power from the panels and you pay nothing for that energy. When sunlight is not enough — at sunrise, sunset, during heavy overcast, or at night — it switches to AC mains.
No user action. No manual toggle.
You can also lock the Hybsun 4USH2200-210-11H hybrid solar well pump to one source if you have a specific reason — for example, using mains only during off-peak tariff hours.
The Hybsun 4USH2200-210-11H hybrid solar well pump is designed for long service intervals. No oil changes. No fuel. No daily start-up. Routine attention is mostly annual wellhead seal inspection and surface pipe checking. The free spare parts kit ships with the unit — so you have the wear components on hand for eventual replacement years down the line. Wet-end inspection is typically a 5-10 year interval under normal Cyprus water chemistry.
CGP Solar handles service visits across Paphos, Limmasol, Nicosia, Larnaka ans Famagusta districts.
Hybsun’s standard 2-year manufacturer warranty.
The Hybsun 4USH2200-210-11H hybrid solar well pump is CE-certified (European Conformity — mandatory for EU/Cyprus sale). Hybsun’s manufacturing facility holds ISO 9001:2015 certification (verified on the 3US datasheet, registration HB 010 0812889).
The AC/DC hybrid controller is IP65-rated — fully dust-tight, protected against pressurised water jets — suitable for outdoor weather-exposed mounting, pump-house installation, or industrial environment placement.
