Not every Cyprus farmland well is drilled deep. Plenty of properties across the Larnaca coastal plain, the Paphos coastal belt, the Famagusta district interior, and the Limassol coastal-adjacent zones tap into shallower aquifers just 25 to 45 metres down.
The Hybsun 4USH2200-60-22H hybrid solar well pump is engineered specifically for this shallow-to-mid depth bracket. 2,200 W of power. Delivers up to 22 m³ of water per hour. Reaches down to 60 metres maximum. The 4-inch body drops into a standard DN100 borehole — no oversize drilling required.
Powered by solar panels in daylight. Hands over to AC mains automatically once the sun drops. No manual switching required. Built from stainless steel. Free spare parts kit ships with every unit.
✓ VAT included · Delivery in Cyprus
What It Is
The Hybsun 4USH2200-60-22H hybrid solar well pump targets the biggest slice of the Cyprus agricultural pump market — properties with shallow-to-mid depth boreholes and steady daily water demand.
Where a shallow surface pump lacks reach and a deep-well would be too much, this model fits precisely in between.
Typical Cyprus applications include vegetable farming across the Larnaca coastal plain, citrus and banana orchards in the Paphos coastal belt, dairy and pig operations across the Famagusta interior, and small commercial premises in the Limassol coastal-adjacent zones.
Wells in the 25-45 metre range are typical for these areas. The pump delivers strong flow at those depths without needing three-phase power — standard 90-300 V single-phase mains is sufficient.

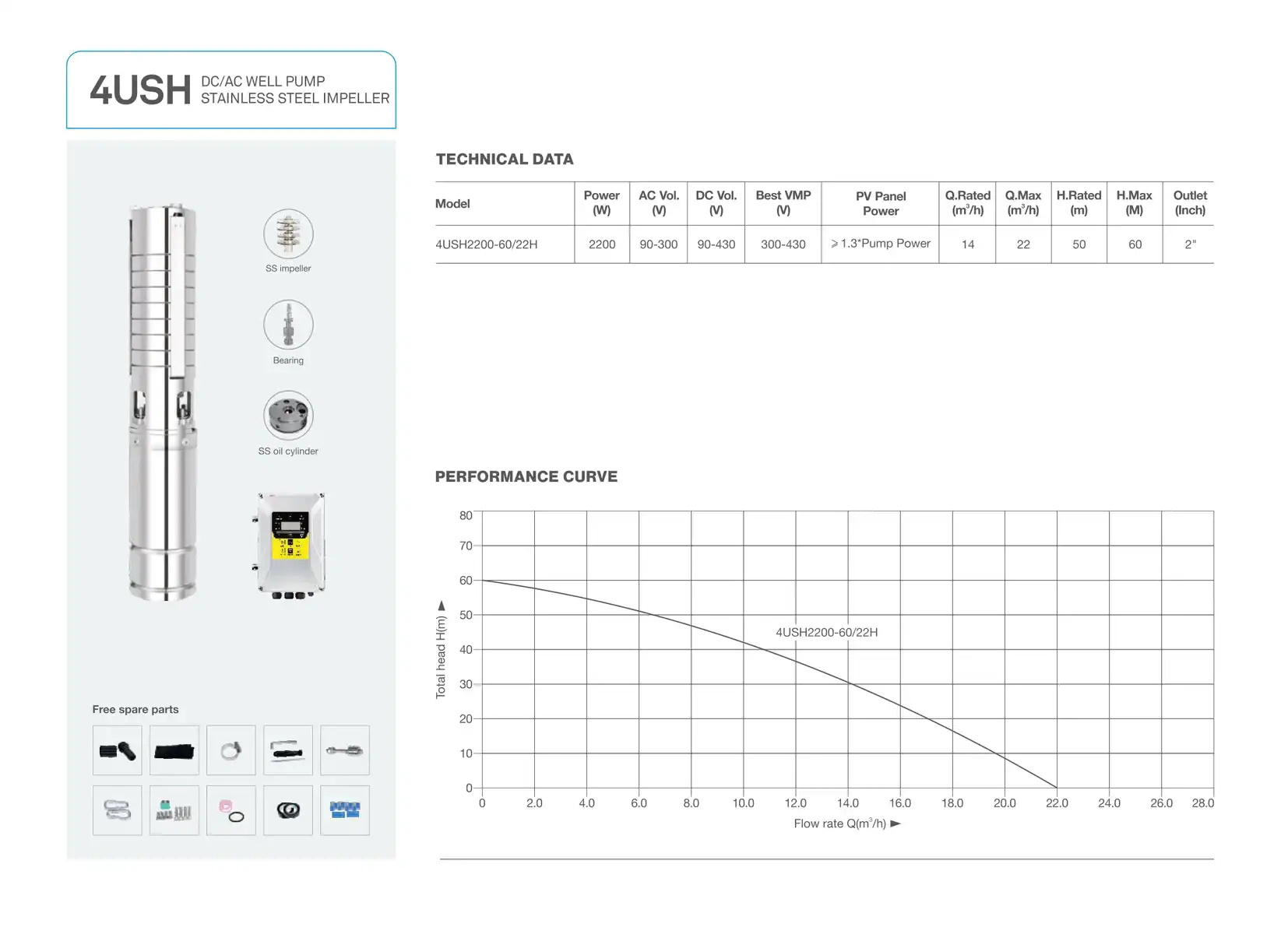

The headline working numbers for the Hybsun 4USH2200-60-22H hybrid solar well pump:
Peak flow tops out at 22 m³/h near the surface. Maximum vertical lift is 60 metres.
The discharge outlet measures 2-inch, and the motor rating is 2,200 W — accepting either solar panel input or standard AC mains.
The controller automatically hands off between solar and mains sources. No user attention required.
For Cyprus buyers, the Hybsun 4USH2200-60-22H hybrid solar well pump is the workhorse choice for the shallow-to-mid depth bracket that dominates the coastal and lowland farmland belt across every district.
Stainless Steel Construction
The Hybsun 4USH2200-60-22H hybrid solar well pump is made from stainless steel. This matters more than it sounds, given the pressures a 60 m pump handles at the rated operating point.
Cyprus coastal and lowland aquifers have their own chemistry. Wells at 25-45 metres depth typically carry dissolved calcium and magnesium from the surrounding sediments, agricultural runoff nearby, and in coastal-adjacent zones occasional salt intrusion.
At the rated 50 m operating point, the pump pushes against roughly 5 bar of pressure plus the flow. That’s a real working load on the impeller.
Every rotating component works harder here than in a surface pump application.
Stainless deals with both the water chemistry and the pumping pressure without progressive damage.
Cheaper pumps in the same size class often use plastic impellers that wear away faster against grit and lime scale. Pumps built from mixed metals corrode more quickly in mineral-rich water.
Stainless steel keeps going through many growing seasons.

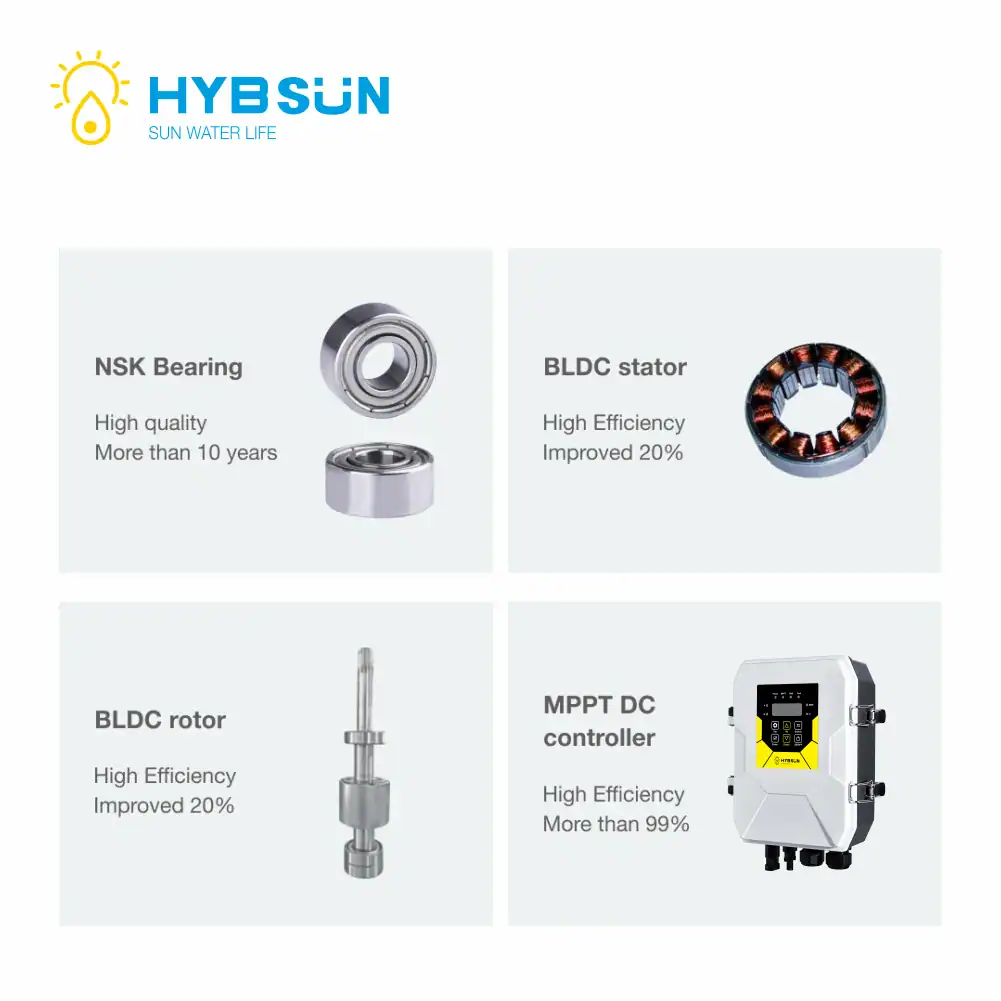

The Hybsun 4USH2200-60-22H hybrid solar well pump uses a 2,200 W motor.
The motor takes input from two possible sources — a solar array when the sun is out, or the grid at other times. Both routes feed into the same integrated controller.
What this means for you day to day:
In daylight, panel electricity travels directly to the motor through the controller. No AC-DC conversion means no losses along that path — solar drives the pump straight from the array.
When cloud cover thickens or evening arrives, the mains supply takes over on its own. Whether you’re on a domestic supply or an agricultural feed, the handoff happens without any user intervention.
Cooling for the motor comes from the water it moves — the pump has to stay under water any time it’s running.
Running dry would destroy the motor in minutes, but the controller’s dry-run protection stops the pump the instant flow disappears.
The Hybsun 4USH2200-60-22H hybrid solar well pump is a 4-inch series model. It fits inside boreholes of 4-inch (DN100) diameter or larger — the standard size for Cyprus coastal-adjacent and lowland agricultural wells.
Every Hybsun 4USH2200-60-22H hybrid solar well pump comes with its matched AC/DC hybrid controller — a wall-mount box that sits between your solar array, your mains input, and the pump cable running down the well.

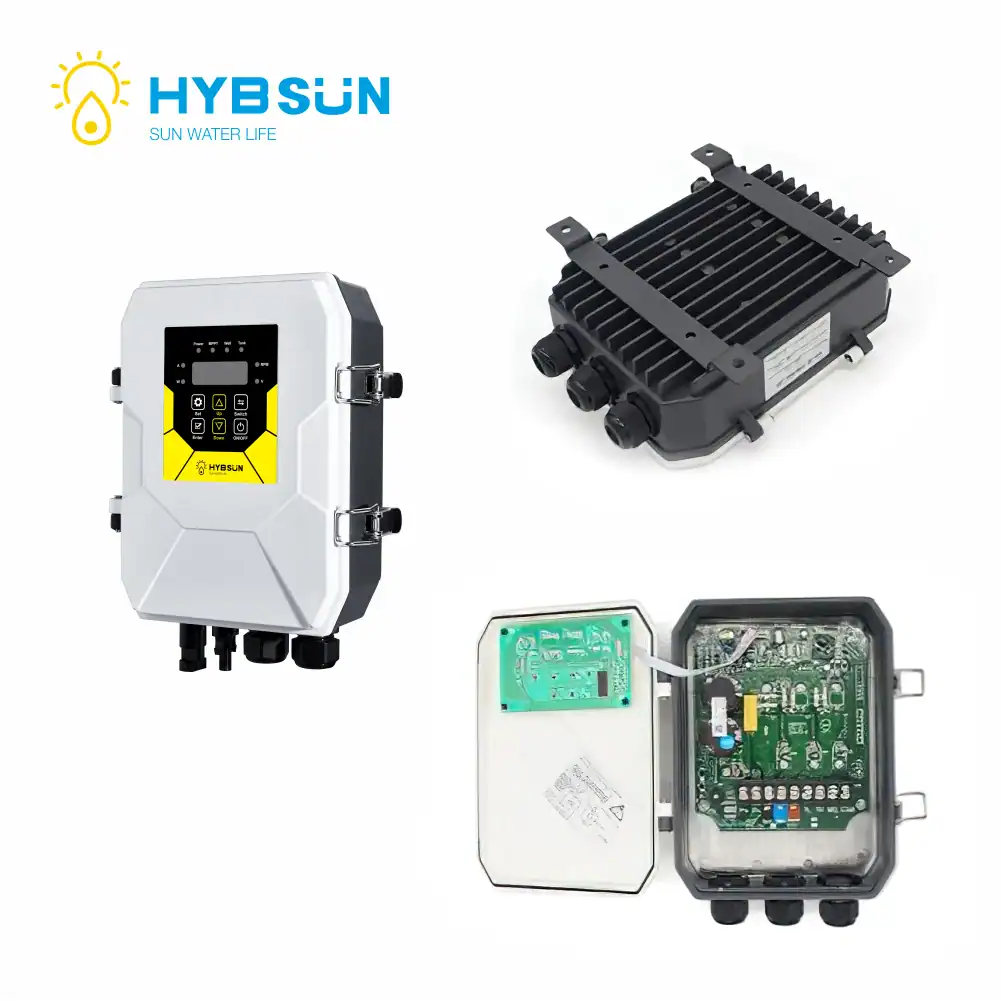

The controller on the the 4USH2200-60-22H does two main jobs.
Panel input: the controller pulls energy from the solar array and keeps tuning to the operating point where the panels are producing their maximum (MPP tracking). It then routes that power to the motor.
Grid input: takes normal mains voltage for evening running, dull weather, and general backup use.
Exact voltage windows are given in the panel sizing area lower on the page.
Source selection happens automatically:
No user switching involved.
The controller ships already tuned to work with this exact pump — no setup on site, no compatibility questions.
Solar-only systems give you free power — provided the sun is up.
Grid-only systems give you round-the-clock supply — at the going kWh rate.
The Hybsun 4USH2200-60-22H hybrid solar well pump gives you both, in one unit.
Daytime pumping runs on solar — free energy.
Evening, night, or thick-overcast pumping? The grid connection handles those windows automatically.
You don’t need to install a battery bank to bridge the non-solar hours — your existing mains does that work.
Financially, the hybrid design just makes sense at 2.2 kW.
A fully off-grid alternative would need 8-15 kWh of battery storage to cover the after-hours — that’s €2,500-€6,000 in batteries alone.
The hybrid approach sidesteps all that by using the mains connection you already have.
In a typical Cyprus install the annual energy usage typically works out like this:
Which means your pumping bill drops by roughly the same share versus running the same pump only from the grid.
Cyprus notches up 2,800-3,000 sunshine hours per year — among the highest anywhere in the EU — so the solar side of the setup more than earns its cost.
The Hybsun 4USH2200-60-22H hybrid solar well pump has built-in safety features. It can run unattended through the whole growing season.
Most important: dry-run protection.
If the well water drops beneath the pump intake so flow stops, the controller cuts power straight away — well before any damage can happen.
This matters on coastal-adjacent farmland wells because summer drawdown is a real risk.
A well flowing generously in spring can start to struggle by late summer, once irrigation demand peaks and the water table has dropped.
Without that cutoff protection, the pump would keep running with no water at the intake — which destroys bearings and seals within minutes.
The controller also handles:
Together, these safeguards let the system take care of itself right through the growing season.
As soon as the water returns to a working level after a cutoff, the controller starts the pump again on its own.
Unboxing & First Look

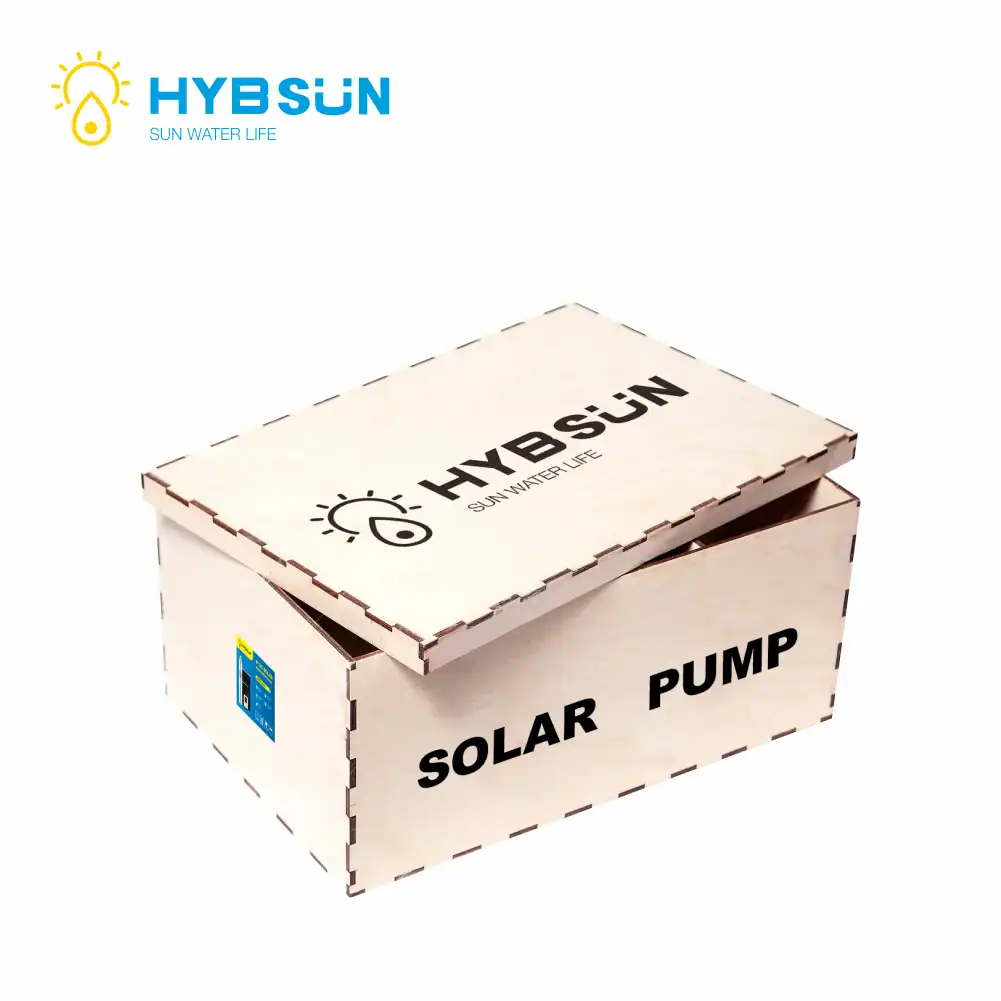

The Hybsun USH AC/DC submersible solar well pump kit is in a wooden box with the pump, the DC solar controller, and accessories. Here’s an unboxing walkthrough showing what’s in the box and how the kit goes together:
Video by Hybsun showing the standard submersible solar well pump kit. The Hybsun 4USH2200-60-22H hybrid solar well pump ships in the same kit format with its model-specific pump.
Who Should Buy This
The Hybsun 4USH2200-60-22H hybrid solar well pump is the shallow-to-mid depth workhorse for the Cyprus agricultural belt.
If your project matches one of these profiles, this is very likely the right pump:
Hybsun makes a broader range of pump models for other operating profiles. If this pump doesn’t match your project, another one might:
Hybsun sets a minimum: your solar array must be at least 1.3 times the pump’s rated power.
For this 2,200 W pump, the minimum works out to 2,860 Wp — around 7-8 standard 400 W panels.
Most real-world installs run higher, at 3,600-4,800 Wp (9-12 panels).
The additional panels above the strict minimum give you margin against a few realities: Cyprus summer heat cuts panel output by 10-15%, dust settles on the array between cleanings, and panels lose a small percentage of their capacity each year across a 20-25 year service life.
The table below sets out how much water the pump delivers at typical operating depths — the figures come straight from Hybsun’s published performance data, read at each depth directly.
“Total dynamic head” combines three things: the static water level depth, friction losses through the pipework, and the vertical rise to your storage tank. Rising-main friction typically adds around 5-10 metres to what the pump actually has to overcome — the exact number depends on pipe diameter, total run length, and the number of fittings.
To translate flow rate into your specific water demand:
For an exact sizing calculation, send CGP Solar your water level, expected drawdown, daily volume need, and any climb to storage. We’ll confirm the Hybsun 4USH2200-60-22H hybrid solar well pump is the right fit — or recommend a better-matching model from the Hybsun range.
1. Stainless steel construction.
Many cheaper solar pumps use plastic impellers to trim the price. That’s fine for clean water — but not for water with sand, organic matter, or dissolved salts in it. The Hybsun 4USH2200-60-22H hybrid solar well pump is built from stainless steel.
Under real Cyprus operating conditions — the mineral load, farmland runoff nearby, seasonal chemistry changes — stainless keeps performing season after season.
2. Works with standard equipment.
The controller’s working voltage window fits a typical 8-9 panel string made up of standard 400 W modules. The 90-300 V AC input window accepts standard Cyprus household electricity — no special connection required.

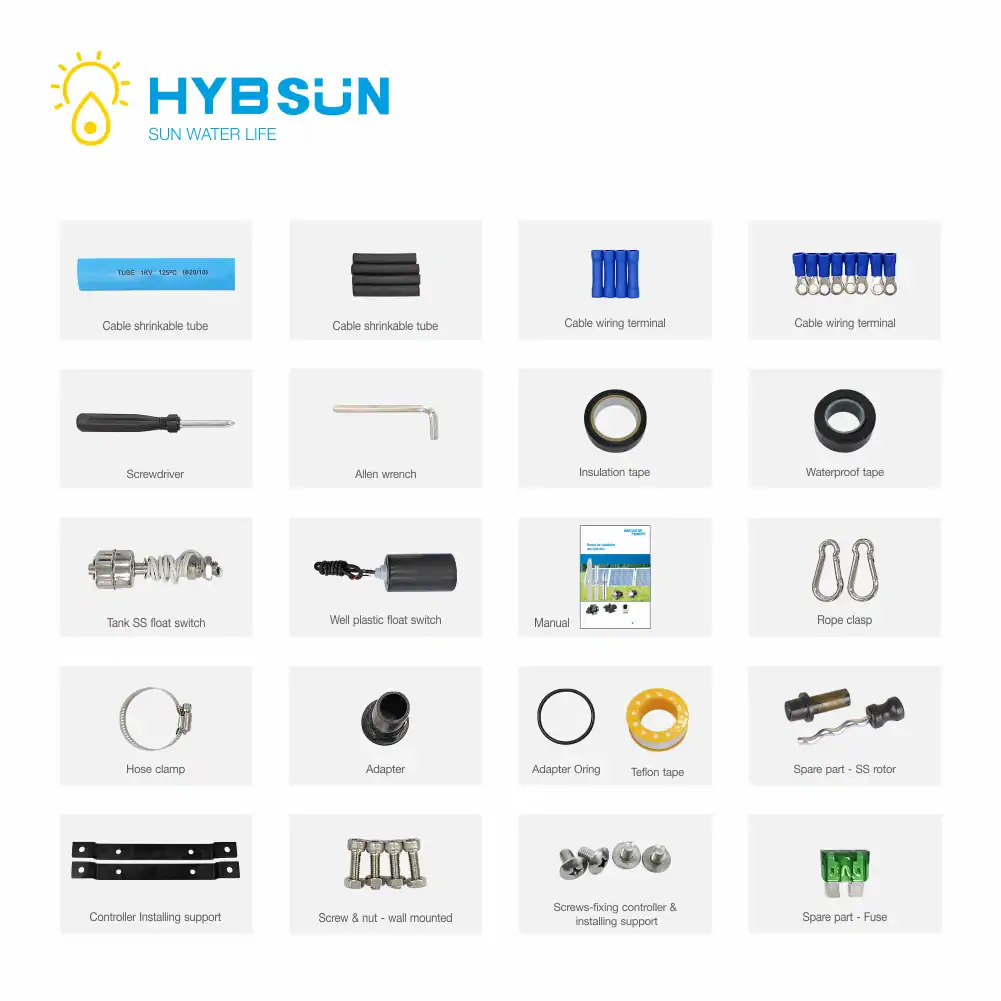

3. Free spare parts kit included.
Every pump comes with a complete spares package — the small wear parts (seals, washers, bushings, brushes) you’ll eventually want to replace after years of use.
It means you’re not tracking down maintenance parts as a separate purchase later.
Protection is built into the controller — nothing for you to set up:
After a dry-run cutoff, the controller waits for the water to recover, then retries the pump automatically — no manual restart required.
This matters more than it might sound.
With a conventional pump, each start pulls a current spike, shocks the impeller, and increases wear on bearings and seals over time. The Hybsun 4USH2200-60-22H hybrid solar well pump avoids that by design. The motor picks up speed gradually as the sun climbs and eases off as the sun drops. The handover to mains also passes through the same soft-start ramp — never a hard motor contact.
Cyprus coastal-adjacent farmland wells have their own summer rhythm.
They tap into productive shallow-to-mid aquifers, but the water table can drop faster than deeper sources during peak irrigation season.
Through July and August, when farmland demand rises sharply, extended pumping can bring the level below the pump intake — especially in a drier season.
The controller on the the 4USH2200-60-22H monitors operating conditions continuously.
The instant the pump intake stops receiving water, power to the motor is cut off.
The controller then keeps retrying the pump on a timed cycle until the water level bounces back.
Installing the Hybsun 4USH2200-60-22H hybrid solar well pump takes 4-6 working days from start to finish.
The shallow-to-mid well deployment plus dual-source (solar + mains) wiring takes a little more time than a simple shallow-well setup. But it’s still much faster than larger industrial installs.
Stage 1 — site visit (1 day)
We measure your well depth, water level, and expected drawdown. We check the well diameter and the condition of the casing.
We verify your existing AC mains service is compatible — the standard 230 V Cyprus mains fits comfortably inside the controller’s 90-300 V input range, so no special electrical service is needed.
Then we plan the pipe route to your tank and pick a panel location with good sun exposure through the day.
Stage 2 — quote & ordering (3-5 days)
We size the panel array against your daily water demand and budget, then spec the rising main pipe.
We plan the controller mounting position and the dual-source wiring — one path from the panels, one from the AC mains.
Finally we confirm pump availability and place the order.
Stage 3 — installation (1 day on site)
We lower the pump into the well and assemble the rising main and mount the panels and complete the array installation — how long this takes depends on the size of the array. After we wire the controller, connect it to both the panels and the AC mains, then test the system under both power sources to confirm everything works correctly.
CGP Solar handles the whole job across Nicosia, Limassol, Paphos, Larnaca, and the Famagusta region.
CGP Solar supplies and installs the pump right across every Cyprus district.
It suits coastal-adjacent vegetable farms, orchard irrigation, greenhouse operations, and mixed livestock — anywhere the well sits within the 60 m maximum head range.
What we handle for you end-to-end:
The process starts with a site visit and well measurement, followed by a sizing calculation matched to your daily water needs and the rated well depth.
We take care of the panel design and mounting, the rising-main sizing, the pump’s deployment into the well, and the dual-source controller wiring and startup.
We wrap up by walking you through the finished install so you know exactly how it all operates.
Cyprus sunshine + solar panels + AC mains backup + the Hybsun 4USH2200-60-22H = up to 100-120 m³ of water per day from your shallow-to-mid depth well. Year after year. With 70-85% off your electricity bill. No fuel cost.
Contact us today to schedule your personalised free consultation.
FAQ’s
Maximum flow is 22 m³/h near zero lift. Flow holds up well across the shallow range, then tails off sharply approaching the head limit.
At 20 m head you get around 17 m³/h. At 30 m it drops slightly to 14 m³/h. At 40 m depth flow is about 11 m³/h. At 50 m the flow is 6.5. At 55 m it falls to around 4 m³/h. At the 60 m maximum head, flow reaches zero.
Choose the pump based on your actual total head figure (well depth + pipe friction losses + tank rise), not against the maximum head number on the label.
No. The Hybsun 4USH2200-60-22H hybrid solar well pump uses a wide-range AC input from 90 to 300 V.
That covers standard Cyprus single-phase household mains (230 V) — no special EAC service upgrade required.
If you need a larger commercial three-phase pump, see the 4GPH range.
The minimum comes to 2,860 Wp, which is 7-8 standard 400 W panels.
Most actual installs go with 3,600-4,800 Wp (9-12 panels) for headroom against summer heat losses and dust accumulation.
Configure them in 8-panel strings — that sits comfortably inside the controller’s 300-430 V operating window.
For a larger array, run a second 8-panel string in parallel into the controller.
The Hybsun 4USH2200-60-22H hybrid solar well pump has built-in dry-run protection.
If the water level falls low enough that the pump loses flow, the controller cuts power immediately — before the motor can be damaged.
Then it retries the pump on a timer until the water table has come back up.
Shallow-to-mid coastal-adjacent wells in Cyprus often see August drawdown as demand peaks — this protection is what enables unattended summer operation.
Daily water production is a function of your total head figure and how the running hours split between solar and mains.
At the rated 50 m head, working flow is around 6.5 m³/h.
Six hours a day of solar-only operation delivers around 39 m³/day. Adding another 3-5 hours of AC mains for peak periods lifts that to 58-71 m³/day.
At shallower depths (around 30 m), daily solar output climbs to about 84 m³/day.
Yes — automatically and continuously.
The controller monitors both inputs.
No user action. You can also lock the Hybsun 4USH2200-60-22H hybrid solar well pump to one source if you have a specific reason — for example, using mains only during off-peak tariff hours.
The Hybsun 4USH2200-60-22H hybrid solar well pump is designed for long service intervals.
Nothing to lubricate. Nothing to fuel. No morning start-up routine.
Regular attention means an annual wellhead seal check and a surface pipework inspection.
Because the free spare parts kit ships with the pump, you have the wear items on hand ready for whenever eventual replacement is needed.
CGP Solar handles service visits across Paphos, Limmasol, Nicosia, Larnaka ans Famagusta districts.
Hybsun’s standard 2-year manufacturer warranty.
The Hybsun 4USH2200-60-22H hybrid solar well pump is CE-certified (European Conformity — mandatory for EU/Cyprus sale). Hybsun’s manufacturing facility holds ISO 9001:2015 certification (verified on the 3US datasheet, registration HB 010 0812889).
The AC/DC hybrid controller is IP65-rated — fully dust-tight, protected against pressurised water jets — suitable for outdoor weather-exposed mounting, pump-house installation, or industrial environment placement.
