What Makes the Enphase IQ System Controller 3 Essential?
Automatic Grid Switching
When grid power fails, milliseconds count.
The Enphase IQ System Controller 3 detects grid loss instantly and transitions your home to backup power in under 120 milliseconds — so fast that your lights, appliances, and computers never even flicker.
It maintains perfect power quality with less than 30 ms variation during the switchover — protecting sensitive equipment such as routers, medical devices, and alarm systems.
In Limassol’s coastal zones, where salt air can occasionally corrode infrastructure, or in Nicosia’s mountain suburbs, where winter storms affect power lines, this precision ensures constant comfort and peace of mind.
Older systems needed separate components scattered across your property.
The Enphase IQ System Controller 3 consolidates everything into one intelligent enclosure, pre-wired and ready for installation.
It includes:
Automatic Transfer Switch (ATS): Handles instant transition between grid and backup power.
IQ Gateway Metered: Enables precise monitoring and control.
Production & Consumption Current Transformers: Measure energy flow in and out of your home.
IQ Relay Functionality: Manages grid connection and surge protection.
Mobile Connect Cellular Modem: Built-in connectivity with 5-year data plan.
System Shutdown Switch: Ensures safe isolation for maintenance or emergencies.
This smart integration reduces wiring time, eliminates component mismatches, and enhances system reliability — a major advantage for solar installations across Cyprus.
Power Capacity and Grid Compatibility
Designed specifically for the Cyprus electrical grid, the Enphase IQ System Controller 3 operates at 230V Line-to-Neutral / 400V Line-to-Line with a 50 Hz frequency.
It tolerates voltage swings from 184V to 276V (L-N) — perfect for areas where minor grid fluctuations occur during high summer demand.
With 80A per phase continuous current, it easily handles:
Air conditioning during summer,
Pool pumps in Limassol villas,
Electric heating in mountain homes near Troodos,
And even future EV charging upgrades.
It supports both single-phase and three-phase systems, so whether you live in a small Nicosia apartment or a large Paphos villa, it adapts perfectly to your setup.
Earthing System Compatibility
Designed for TN-C-S, TN-S, and TT earthing systems—all common in Cyprus residential construction. The controller automatically adapts to your home’s existing earthing configuration, eliminating compatibility concerns during installation.

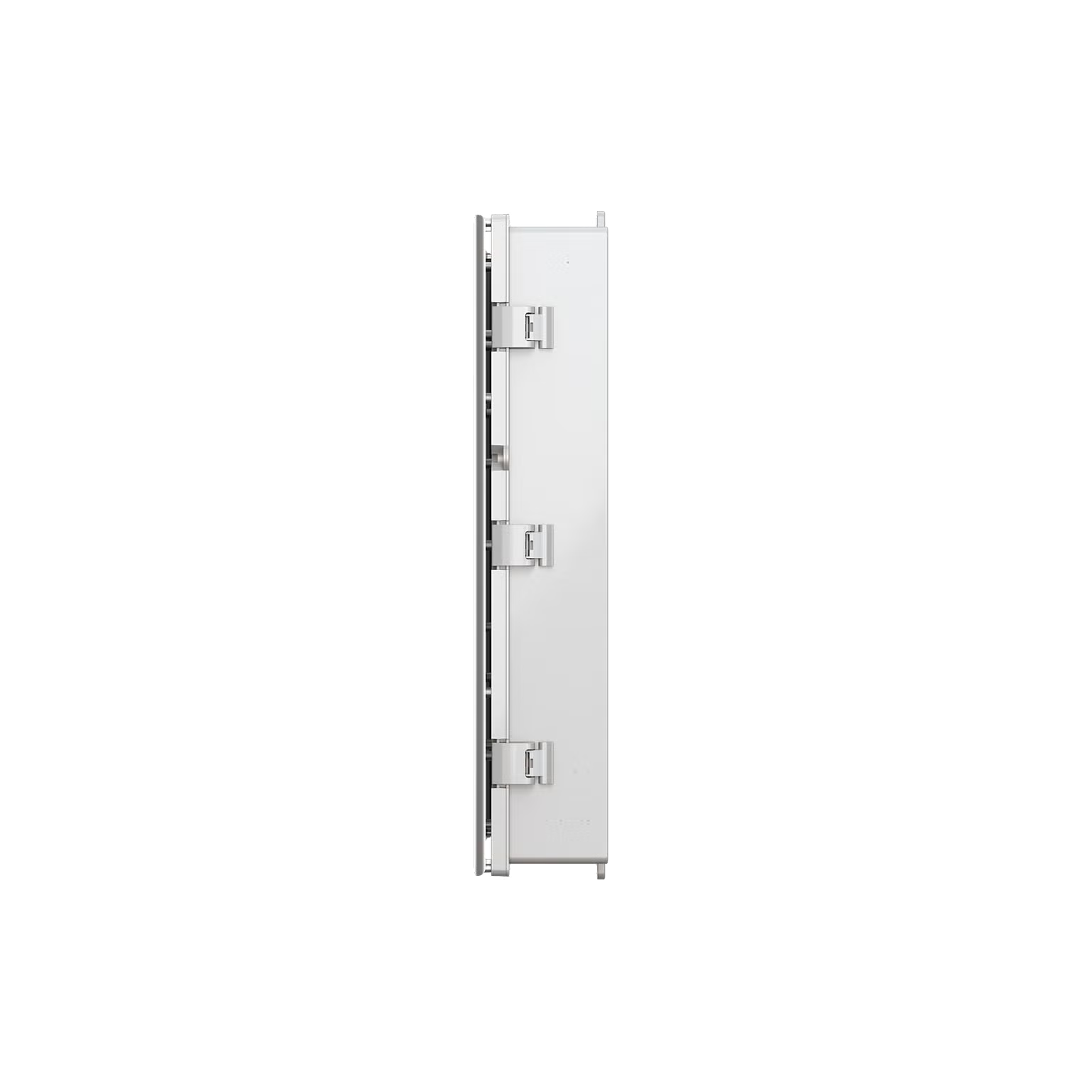

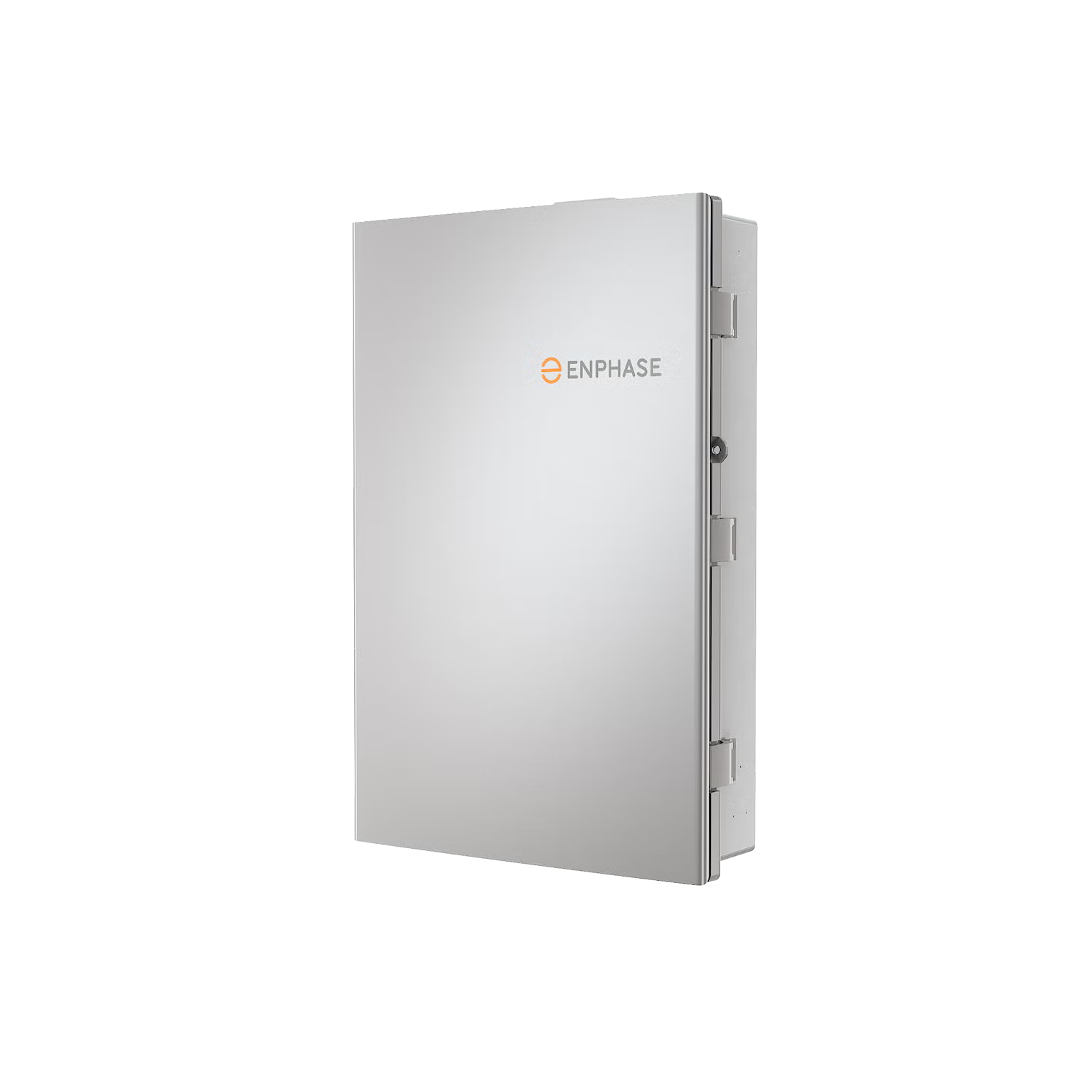

Physical Installation
Dimensions: 760mm (H) × 500mm (W) × 158mm (D)
Weight: 15.2 kg
Enclosure Rating: IP55 (suitable for both indoor and outdoor installation)
Mounting: Wall mount with clearance required on all sides
Temperature Range: -40°C to 50°C ambient operation
Humidity: Up to 100% relative humidity, condensing
Altitude: Suitable up to 2000 meters
The IP55 rating means the unit withstands Cyprus’s coastal salt air, direct sun exposure, and occasional rain. The polycarbonate construction resists UV degradation and maintains structural integrity throughout the Mediterranean climate’s demands.
For typical Cyprus installations, the 15.2 kg weight requires secure mounting to structural elements—concrete walls, solid masonry, or properly braced stud framing. The compact dimensions fit comfortably in utility rooms, garages, or protected outdoor areas near existing electrical panels.
Battery Integration and Energy Storage
IQ Battery 5P Compatibility
The Enphase IQ System Controller 3 integrates seamlessly with Enphase IQ Battery 5P units—modular AC-coupled storage systems offering 5 kWh usable capacity per battery. Each battery includes six embedded IQ8D-BAT or IQ8T-BAT microinverters, creating a fully integrated AC battery system that requires no separate inverter equipment.
You scale your storage by adding batteries to match your household’s consumption patterns and backup duration requirements. A single battery provides several hours of backup for essential loads—refrigeration, lighting, internet connectivity, and security systems. Multiple batteries extend backup duration to cover entire evenings or full days depending on your consumption.
For Cyprus homes, typical configurations range from:
Modest backup (2 batteries / 10 kWh): Covers essential loads through evening and overnight periods
Comprehensive backup (3-4 batteries / 15-20 kWh): Powers most household circuits through extended outages
Full independence (5+ batteries / 25+ kWh): Supports complete home operation including air conditioning for extended periods
The modular approach means you start with capacity matching your immediate needs and budget, then expand as circumstances change—perhaps when adding an electric vehicle, installing a swimming pool, or simply desiring longer backup duration.
Operating Modes
Self-Consumption Mode: The Enphase IQ System Controller 3 uses stored solar energy to power your home after sunset. During daytime, excess solar production charges batteries. After sunset, the system draws from battery storage, minimizing grid consumption during evening peak-rate hours. This mode maximizes your solar investment’s value by time-shifting your production to match consumption patterns.
Full Backup Mode: The Enphase IQ System Controller 3 reserves 100% of battery capacity exclusively for grid outages. Solar production meets immediate household demand and exports any excess to the grid, but batteries remain fully charged and ready for backup duty. This mode prioritizes security over daily savings, ensuring maximum backup duration whenever grid failure occurs.
Cyprus homeowners typically use Self-Consumption mode during normal conditions to maximize savings, but some prefer Full Backup mode during storm seasons or when extended travel leaves the home unoccupied.
Microinverter Compatibility
IQ8 Series Microinverters
The Enphase IQ System Controller 3 works seamlessly with IQ8 Series Microinverters—Enphase’s latest generation featuring grid-forming capabilities. These microinverters enable the system to create a stable microgrid during grid outages, powering your home directly from solar production even without battery support (Sunlight Backup mode).
IQ8 microinverters attach to individual solar panels, converting DC power to AC at each panel location. This distributed architecture means your system tolerates partial shading, panel soiling, or individual panel failures without compromising overall system performance. On Cyprus rooftops with chimneys, satellite dishes, solar water heaters, or varying orientations, panel-level optimization maintains maximum production.
IQ7 Series Microinverters
The controller maintains compatibility with IQ7 Series Microinverters, protecting your investment if you’re upgrading an existing Enphase system. While these earlier generations lack the grid-forming capabilities of IQ8, they work perfectly for battery-backed systems where the Enphase IQ System Controller 3 manages backup power through energy storage rather than direct solar production during outages.
Backup Power Configurations
Single-Phase Backup
The Enphase IQ System Controller 3 supports single-phase backup operation, powering a dedicated backup panel with circuits you’ve selected as essential. This configuration works well for homes where you want to prioritize specific loads—kitchen appliances, select lighting circuits, office equipment, medical devices, and security systems.
During grid outages, the Enphase IQ System Controller 3 maintains power to your backup panel while non-essential circuits (pool equipment, electric water heaters, second air conditioning units) remain offline. This selective approach extends battery runtime significantly, potentially covering you through multi-day outages depending on your consumption discipline.
Three-Phase Backup
For homes with three-phase power throughout—common in larger Cyprus properties—the Enphase IQ System Controller 3 supports three-phase backup operation. This maintains balanced power across all three phases, allowing your entire home to operate normally during grid outages.
Three-phase backup requires more substantial battery capacity to handle the higher potential loads, but delivers complete energy independence without circuit prioritization or lifestyle compromises during outages.
Integrated Monitoring and Control
IQ Gateway Functionality
Every Enphase IQ System Controller 3 includes an IQ Gateway for real-time data and control through the Enphase App.
You can:
Track solar production and battery charge.
View consumption and grid import/export.
Receive alerts for outages or performance changes.
The Gateway connects to your home network via WiFi or Ethernet (required as primary connection for systems with batteries), with the included cellular modem providing backup connectivity during internet outages. This dual-connectivity approach ensures you maintain monitoring even when your internet service provider experiences disruptions.
For Cyprus homeowners who travel frequently or own second homes, remote monitoring proves invaluable. Check system status from anywhere, receive alerts if production drops unexpectedly, and verify your home maintains power during your absence.
Mobile Connect Cellular Modem
Every controller includes an Enphase Mobile Connect cellular modem with a 5-year pre-paid data plan. This plug-and-play device activates automatically when connected, requiring no SIM card management, carrier selection, or data plan purchases.
The cellular connection serves two critical functions:
- Monitoring Backup: Maintains system monitoring during internet outages
- Installation Connectivity: Provides immediate connectivity during installation before home internet configuration
The 5-year data plan covers the typical period before system monitoring transitions primarily to your permanent internet connection, though the cellular backup remains available throughout the controller’s operational life.
Safety Features and Shutdown Capability
System Shutdown Switch
Located near your main panel, this switch isolates the entire solar and battery system instantly for maintenance or emergencies. When activated, it:
- Disconnects solar production from your home
- Isolates battery systems
- Prevents microgrid formation
- Brings all circuits to touch-safe voltage levels
This complies with Cyprus electrical and safety regulations, protecting service personnel and emergency responders.
IQ Relay Protection
Built-in voltage and frequency monitoring automatically disconnects your system if the grid becomes unstable — protecting your home and the utility network from unsafe backfeed.
Learn more on official Enphase website.
Professional Installation and Certification
The Enphase IQ System Controller 3 must be commissioned by certified Enphase installers.
CGP Solar partners exclusively with certified professionals across Nicosia, Limassol, Larnaca, Paphos, and Famagusta.
Our network handles:
Load and phase analysis
Correct earthing (TN-C-S, TN-S, TT)
Compliance with Electricity Authority of Cyprus (EAC) standards
Proper meter and CT placement
Safety testing and documentation
This professional approach protects your investment, ensures optimal system performance, maintains compliance with warranty requirements, and provides the safety assurances necessary for a system generating and storing substantial electrical energy.
While DIY solar installation might seem appealing for cost savings, this controller’s complexity, high-voltage electrical work, and safety implications make professional installation essential rather than optional.
Why Choose CGP Solar as Your Enphase Partner
Authentic Product Guarantee
We source directly from Enphase — every IQ System Controller 3 comes with full factory warranty and EU certification. No grey imports, no missing firmware updates.
Local Expertise
Our team understands Cyprus-specific installation requirements, local electrical codes, and how Enphase equipment performs in Mediterranean conditions. When you have questions or need assistance, you’re speaking with people who understand your exact situation—not reading from generic scripts or applying one-size-fits-all solutions.
Certified Installer Network
Our installers are trained continuously on Enphase products, ensuring safe, efficient, and compliant installations.
Complete System Design
We design turn-key solar and battery systems, not just sell boxes.
Our team helps design complete energy solutions tailored to your specific home, consumption patterns, budget, and backup requirements. From initial consultation through final commissioning, we guide you through every step:
Site Assessment: Evaluating roof space, electrical service, and installation locations
Consumption Analysis: Understanding your energy usage and identifying savings opportunities
System Sizing: Determining appropriate solar capacity and battery quantity
Backup Planning: Identifying critical loads and backup configuration
Financial Planning: Explaining costs, available incentives, and expected savings
Permitting: Handling required approvals and utility interconnection
Ongoing Support
Your relationship with CGP Solar doesn’t end when installation completes. We provide ongoing technical support, warranty administration, and system optimization assistance throughout your solar system’s lifetime.
Need to add batteries as your consumption grows? We handle the expansion. Questions about system performance or unexpected behavior? Our technical team investigates. Warranty claim required? We manage the process with Enphase.
This long-term partnership approach means you have a local point of contact who knows your system, understands your property, and advocates for your interests when dealing with the manufacturer or navigating technical issues.
Ready to explore how the Enphase IQ System Controller 3 can transform your Cyprus home’s energy management? CGP Solar’s experienced team is ready to answer your questions, assess your specific situation, and design a system that meets your needs and budget.
