Cyprus has plenty of wells drilled deeper than 40 metres — in the interior farmland, the mid-elevation villages, the foothill properties. Wells 40 to 70 metres deep are common across the Nicosia foothills, inner Larnaca, mid-elevation Paphos, and the Limassol interior. The Hybsun 4USH2200-87-20H hybrid solar well pump is built for exactly this range. 2,200 W of power. Up to 20 m³ of water per hour. Reaches down to 87 metres. The 4-inch body slides into a standard DN100 borehole. It runs on solar panels during the day. At night — or when the sky is overcast — it switches to AC mains automatically. No user action needed.
Built from stainless steel. Free spare parts kit included with every unit.
✓ VAT included · Delivery in Cyprus
What It Is
The Hybsun 4USH2200-87-20H hybrid solar well pump is the balanced mid-range pump in the 4USH series. It reaches deeper than the 6-inch shallow-well models — but stays within the standard 4-inch borehole size, so drilling costs stay manageable.
Typical Cyprus uses include interior farmland wells drilled 40 to 70 metres, mid-elevation properties, small agritourism operations, and rural single-family or multi-family supply. The pump reaches a proper productive aquifer at depth. But it uses standard single-phase 90-300 V AC input — no three-phase electrical service required.
Key working numbers for this pump:
Peak flow reaches 20 m³/h at almost zero lift. Maximum vertical reach is 87 metres. The rated operating point sits at 14 m³/h with 70 m of head. The outlet is 2-inch, and the motor is 2,200 W — running on either solar panels or standard AC mains. The controller handles the switch between solar and mains automatically — nothing for you to do.
For Cyprus buyers, this pump covers the deeper interior farmland and foothill areas — Nicosia foothills, inner Larnaca, mid-elevation Paphos, and Limassol interior — where the 6USH shallow-well pumps can’t quite reach.
Stainless Steel Construction
The Hybsun 4USH2200-87-20H hybrid solar well pump is made from stainless steel. This matters more than it might sound, especially at the higher pressures an 87 m pump generates.
Deeper Cyprus wells reach different water. At 40-70 metres depth, the aquifer chemistry changes — higher mineral load, more dissolved calcium and magnesium, sometimes iron picked up from the surrounding bedrock.
The interior foothill areas around Nicosia and Larnaca in particular carry mineral-rich water at these depths.
Stainless takes the mineral chemistry and the pressure without breaking down.
Budget pumps in the same class often go with plastic impellers, which wear down quicker against grit and mineral buildup. Pumps with mixed metals corrode faster once the mineral load gets high.
Stainless steel holds up across multiple growing seasons.
The Hybsun 4USH2200-87-20H hybrid solar well pump uses a 2,200 W motor.
The motor runs from either a solar array during the day or standard mains power when needed — both routed through the matched controller.
Why this matters practically:
While the sun is up, your panels feed the pump directly through the controller. There’s no conversion loss — the DC from the panels goes straight into the motor.
Once the sun goes down or heavy cloud rolls in, the mains supply steps in seamlessly. Whether that’s your household electricity or a farm supply, the switch happens without you doing anything.
Cooling is handled by the water itself as it flows past the motor housing — which means the pump has to stay submerged at all times.
Running it out of water would ruin it fast, but the controller’s dry-run protection catches that risk automatically if your well level ever drops too low.
The Hybsun 4USH2200-87-20H hybrid solar well pump is a 4-inch series model. It fits inside boreholes of 4-inch (DN100) diameter or larger — the standard size for Cyprus medium-depth agricultural wells.

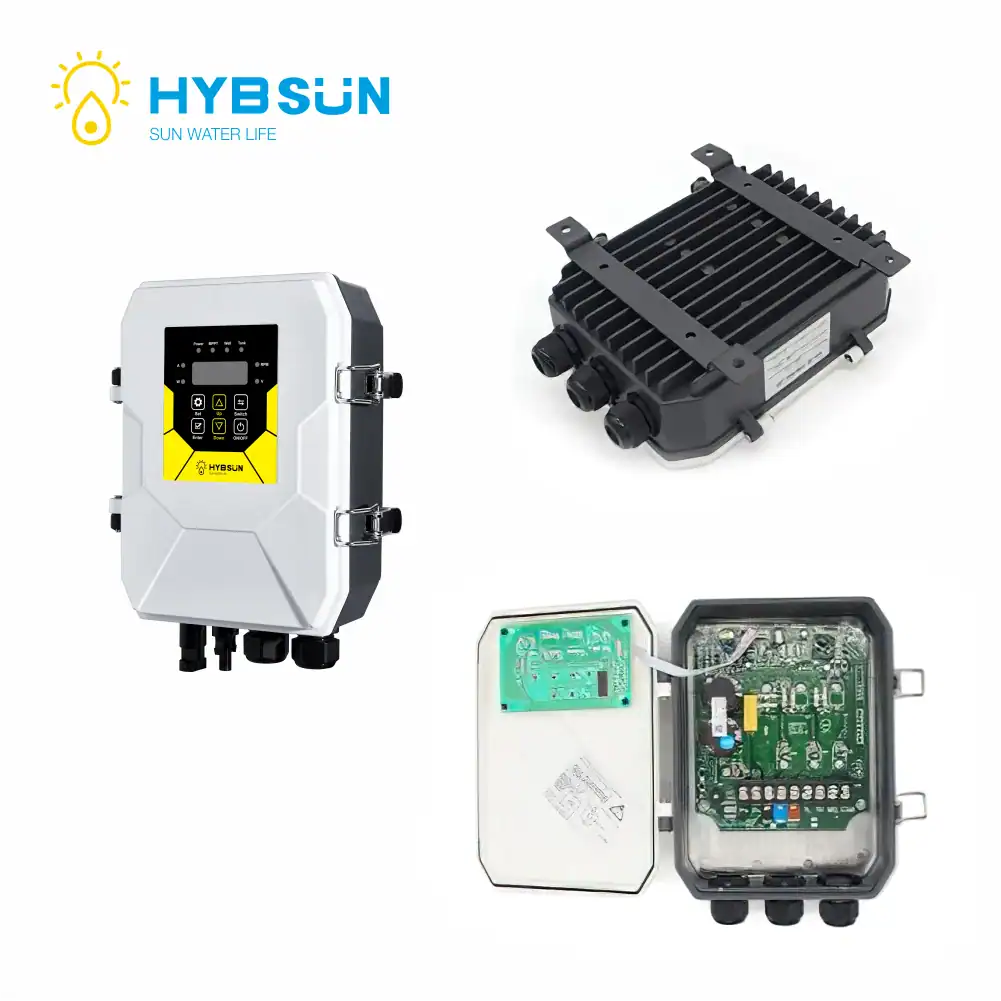

The Hybsun 4USH2200-87-20H hybrid solar well pump ships with its matched AC/DC hybrid controller — a wall-mountable unit sitting between your panels, the AC mains, and the pump. The controller on the the 4USH2200-87-20H does two main jobs.
DC input: pulls power from the panels and tunes itself to the point where output is highest (this is called MPP tracking). That power then heads to the pump motor.
AC input: takes standard mains voltage for backup or after-dark running.
Voltage specifics are covered in the panel sizing section a bit further down the page.
The source-switching happens on its own:
Nothing to flip manually.
Your controller comes already matched to the pump — nothing to configure on site, no compatibility guesswork.
Solar-only setups are great — until the sun sets.
Grid-only setups are convenient — but every kilowatt-hour costs you money.
The Hybsun 4USH2200-87-20H hybrid solar well pump gives you both, in one unit.
Daylight hours run on solar — that energy is free.
Need water after dark or during thick overcast? Mains kicks in on its own.
No need for batteries to fill in the quiet hours — the mains connection does that work for you.
Going fully off-grid with battery backup for the after-hours would mean 8-15 kWh of battery storage — figure €2,500-€6,000 for the batteries alone.
Skip all that. Let your existing mains connection cover what the sun can’t.
In a typical Cyprus setup, the energy usage breaks down like this:
That means your bill for pumping drops by about the same percentage compared to a grid-only pump.
Soft start (no inrush current damage to the motor), dry-run protection (pump stops if there’s no water, auto-restarts 30 minutes later), over-voltage, under-voltage, over-current, overload, phase-loss, high working temperature protection, and adjustable speed (frequency conversion). The controller automatically starts and stops the pump based on solar conditions. For boreholes subject to occasional dry-out, the automated retry function removes the manual reset trip — the pump tests the well itself every 30 minutes.
Unboxing & First Look

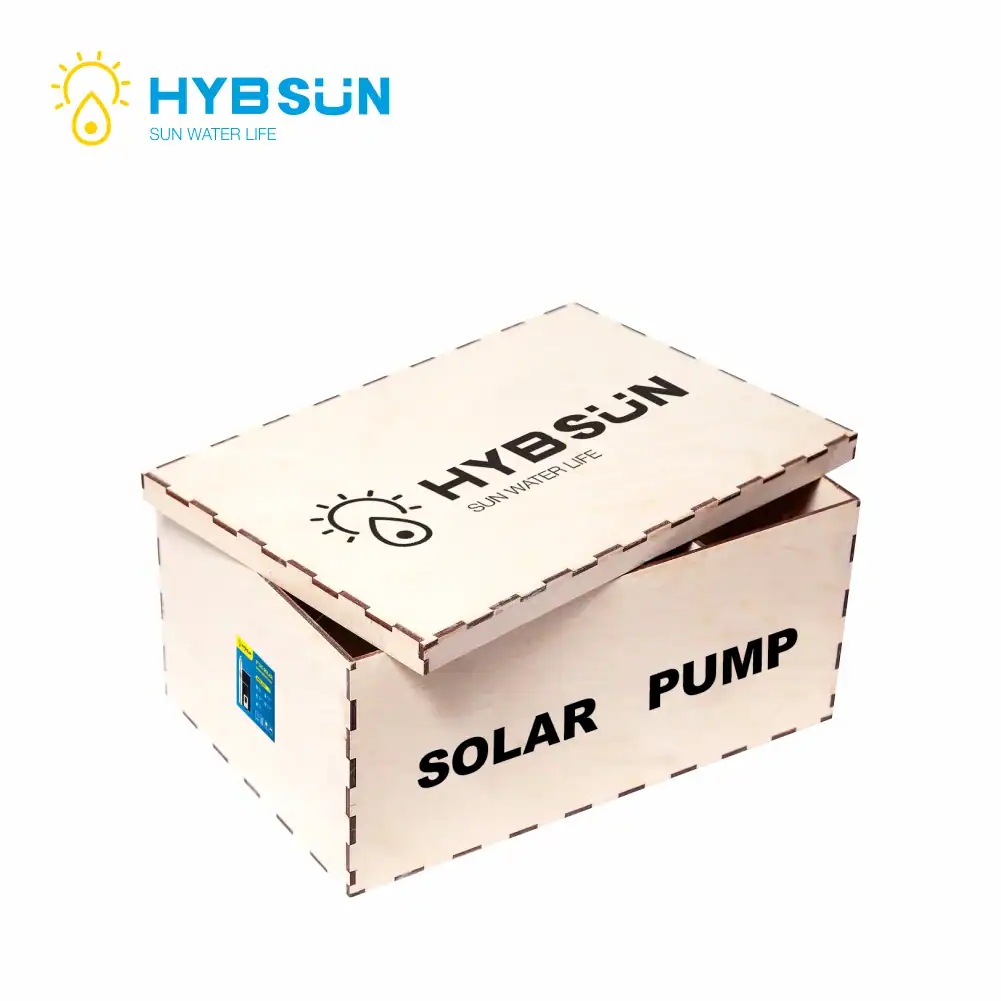

The Hybsun 4USH AC/DC submersible solar well pump kit is in a wooden box with the pump, the DC solar controller, and accessories. Here’s an unboxing walkthrough showing what’s in the box and how the kit goes together:
Video by Hybsun showing the standard submersible solar well pump kit. The Hybsun 4USH2200-87-20H hybrid solar well pump ships in the same kit format with its model-specific pump.
Who Should Buy This
The Hybsun 4USH2200-87-20H hybrid solar well pump matches Cyprus deeper interior wells and foothill properties.
If any of these profiles match what you’re working on, this pump is very likely a good fit:
Hybsun makes several other pump models for different operating profiles. If the Hybsun 4USH2200-87-20H doesn’t match your project, one of these might:
Hybsun sets the minimum solar panel array at 1.3 × the pump’s power rating.
For Hybsun 4USH2200-87-20H hybrid solar well pump (a 2,200 W pump), that’s a minimum of 2,860 Wp — about 7-8 standard 400 W panels.
Most real installs go higher, to 3,600-4,800 Wp (9-12 panels).
Adding those extra panels buys you headroom against a few things: hot Cyprus summers cut panel output by 10-15%, dust accumulates between cleanings, and panels lose a fraction of their capacity each year across a 20-25 year working life.

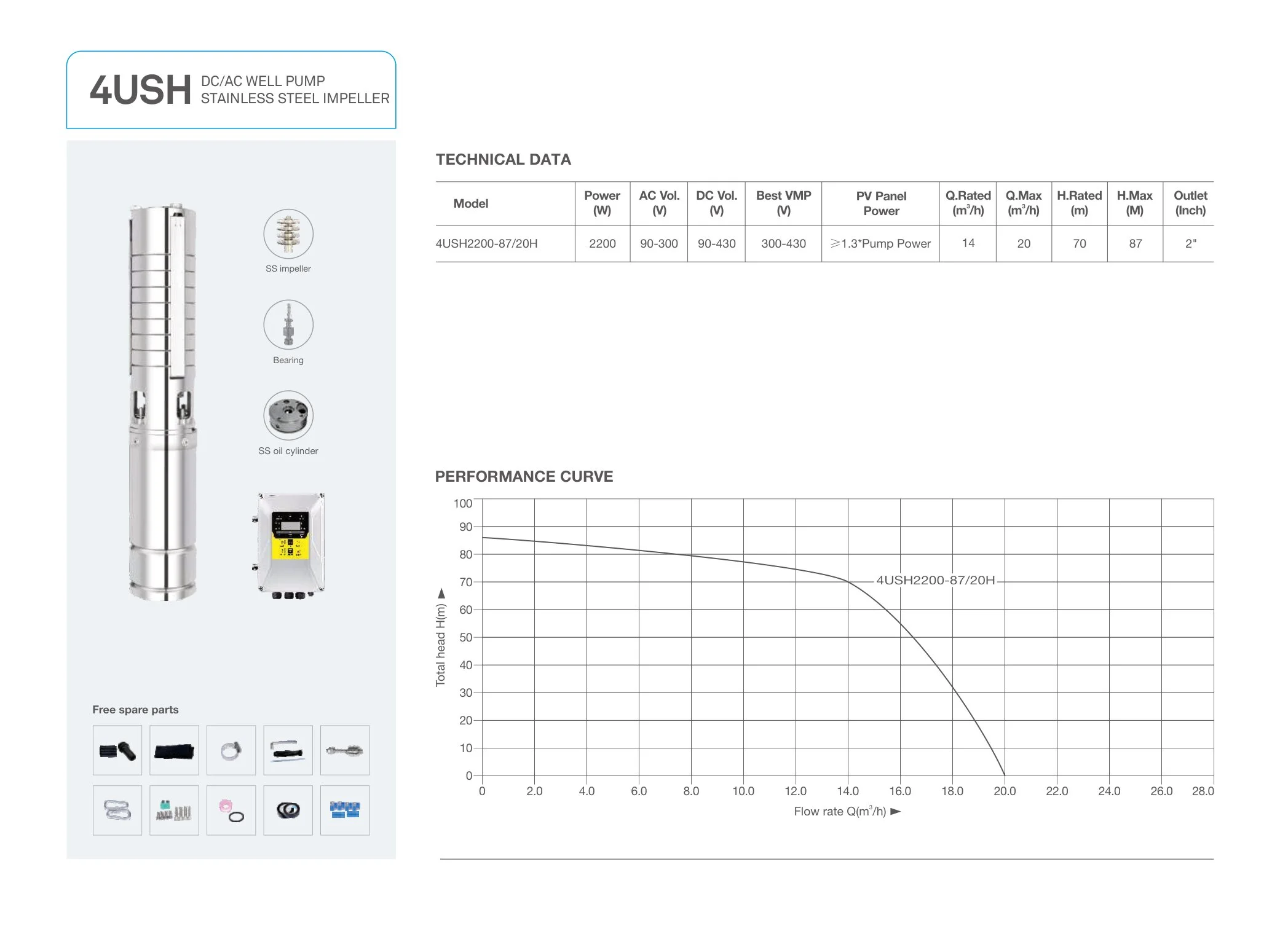

The table below shows the working flow the pump delivers at standard depth intervals — the numbers come from Hybsun’s published specifications.
“Total dynamic head” is the sum of static water depth, pipe friction losses, and the vertical climb up to your storage tank. Friction along the rising main typically adds around 5-10m to the effective head — the actual figure depends on pipe diameter, run length, and how many fittings you have.
To translate flow rate into your specific water demand:
For an exact sizing calculation, send CGP Solar your water level, expected drawdown, daily volume need, and any climb to storage. We’ll confirm the Hybsun 4USH2200-87-20H hybrid solar well pump is the right fit — or recommend a better-matching model from the Hybsun range.
1. Stainless steel construction.
Plenty of budget solar pumps go with plastic impellers to keep the price down. Fine in clean water — trouble in water carrying sand, plant material, or salts.
The Hybsun 4USH2200-87-20H hybrid solar well pump is built from stainless steel.
Under actual Cyprus field conditions — the mineral content of the water, runoff from surrounding land, chemistry that shifts with the seasons — stainless keeps going year after year.
2. Works with standard equipment.
The controller’s working voltage range lines up with a standard 8-9 panel string built from common 400 W modules.
Its 90-300 V AC input range takes standard Cyprus household electricity — no special electrical connection required.
Get your panels from a local supplier, wire them into the controller, connect the mains, and start the pump.
3. Free spare parts kit included.

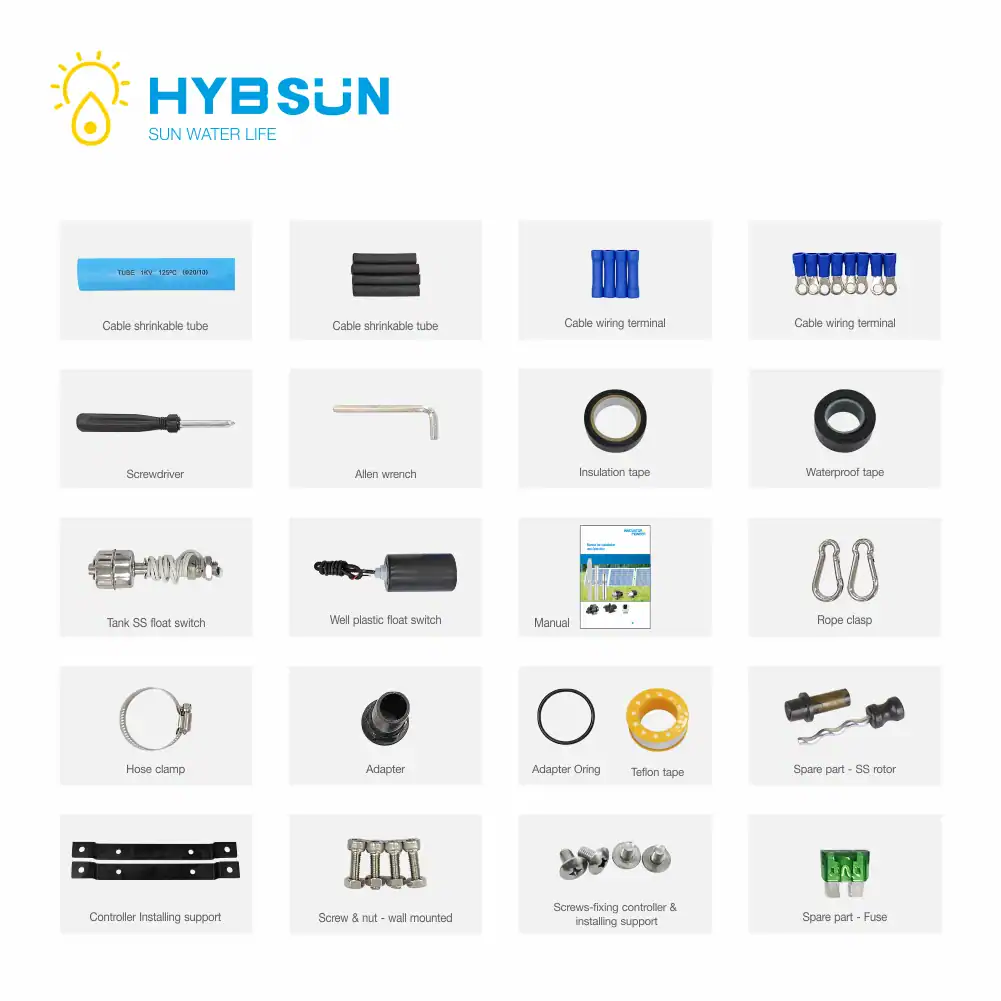

Every unit ships with a full spares package — the small wear parts (seals, washers, bushings, brushes) that eventually need replacing after years of duty.
That saves you having to order maintenance parts separately down the road.
Automated protection sits inside the controller — nothing for you to configure:
Following a dry-run stop, the controller waits for the water to come back and re-tries the pump on its own — no need for a manual restart.
This matters more than it might sound.
On a conventional pump, every start pulls a current spike, jolts the impeller, and adds up to faster wear on bearings and seals.
The Hybsun 4USH2200-87-20H hybrid solar well pump avoids that by design.
As the sun rises the motor picks up speed. As it drops, the motor eases off. Even the changeover to mains runs through the same soft-start ramp — never a hard contact into the motor.
Cyprus interior farmland wells have their own drawdown pattern.
They reach into good aquifer zones, but the water table recovers more slowly than it does with shallower surface sources.
Come July and August, when irrigation demand peaks, sustained pumping can drop the level below the pump intake — particularly in dry years.
The controller on Hybsun 4USH2200-87-20H hybrid solar well pump monitors operating conditions continuously.
As soon as the pump intake stops seeing water, power is cut immediately.
The controller then keeps trying to restart on a timed cycle until the water level has recovered.
Installing the Hybsun 4USH2200-87-20H hybrid solar well pump takes 4-6 working days from start to finish.
The medium-depth well work plus wiring in both a solar and a mains path takes a bit longer than a straightforward shallow-well solar install. But it’s still much faster than larger industrial installs.
Stage 1 — site visit (1 day)
We measure the well depth, current water level, and how much drawdown to expect. We check the diameter and inspect the state of the casing.
We check that your existing AC service is compatible — Cyprus 230 V household mains sits comfortably inside the controller’s 90-300 V window, so there’s no need for a special electrical connection.
After that we map out the pipe run to your tank and identify a panel spot that catches sun through most of the day.
Stage 2 — quote & ordering (3-5 days)
We size the panel array to your daily water demand and budget, then choose the rising main pipe spec.
We work out where the controller will mount and lay out the dual-source wiring — a solar path and a mains path.
Last, we confirm the pump is available and put in the order.
Stage 3 — installation (1 day on site)
We lower the pump into the well and assemble the rising main and mount the panels and complete the array installation — how long this takes depends on the size of the array. After we wire the controller, connect it to both the panels and the AC mains, then test the system under both power sources to confirm everything works correctly.
CGP Solar handles the whole job across Nicosia, Limassol, Paphos, Larnaca, and the Famagusta region.
Ready to bring your medium-depth Cyprus well onto solar with AC mains as backup?
CGP Solar supplies and installs the pump across every Cyprus district.
It fits interior farmland irrigation, rural residential supply, agritourism properties, and foothill livestock systems — anywhere the well sits within the 87 m maximum head range.
What we handle for you end-to-end:
We begin with a site visit and well measurement, then run a sizing calculation against your daily water demand and rated well depth.
We take care of the panel array design and mounting, the rising-main pipe sizing, lowering the pump into the well, and the dual-source controller wiring and startup.
We finish with a walkthrough of the whole system so you know exactly how everything works.
Cyprus sunshine + solar panels + AC mains backup + the Hybsun 4USH2200-87-20H hybrid solar well pump = up to 100-140 m³ of water per day from your medium-depth well. Year after year. With 70-85% off your electricity bill. No fuel cost.
Contact us today to schedule your personalised free consultation.
FAQ’s
Peak flow is 20 m³/h at almost zero lift. Flow stays fairly steady across the shallow-to-medium range, then drops off sharply near the maximum head.
At 20 m head you get around 19 m³/h. At 40 m it drops slightly to 17.5 m³/h. At 60 m it is about 15.5 m³/h. At the rated point of 70 m the flow is 14 m³/h. At 80 m it falls to about 7.5 m³/h. At the 87 m maximum head, flow reaches zero.
Choose the pump against your real total head (well depth plus pipe losses plus tank height), not against the maximum figure printed on the specs.
No. The Hybsun 6USH2200-50-35H hybrid solar well pump uses a wide-range AC input from 90 to 300 V.
That covers standard Cyprus single-phase household mains (230 V) — no special EAC service upgrade required.
If you need a larger commercial three-phase pump, see the 4GPH range.
The minimum is 2,860 Wp — that’s 7-8 standard 400 W panels.
Most real installs use 3,600-4,800 Wp (9-12 panels) for extra margin against summer heat losses and dust buildup.
Wire them as 8-panel strings — that lands comfortably inside the controller’s 300-430 V working range.
For a bigger array, wire a second 8-panel string in parallel into the controller.
The Hybsun 4USH2200-87-20H hybrid solar well pump has built-in dry-run protection.
Should the water level fall below the pump so flow stops, the controller will cut power before any damage occurs.
It then retries the pump on a timed schedule until the water table has recovered.
Medium-depth interior farmland wells in Cyprus often see August drawdown — this protection is what makes unattended summer operation possible.
Daily water output depends on your total head and the mix of solar and mains hours you run.
At the rated 70 m head, working flow is around 14 m³/h.
Running on solar alone for 6 hours a day gives you about 84 m³/day. Adding 3-5 hours of AC mains for peak demand brings that up to 125-155 m³/day.
At shallower heads (around 40 m), daily solar output climbs to about 105 m³/day.
Yes — automatically and continuously.
The controller monitors both inputs continuously. If the panels can supply enough power, the pump runs from solar and that energy costs you nothing. When the sun isn’t enough — around sunrise or sunset, under heavy overcast, or overnight — mains takes over.
No user action.
You can also lock this pump to one source if you have a specific reason — for example, using mains only during off-peak tariff hours.
The Hybsun 4USH2200-87-20H hybrid solar well pump is designed for long service intervals.
No oil to change. No fuel to buy. No daily start-up routine.
Regular attention amounts to a yearly seal check at the wellhead and an inspection of the surface pipework.
The free spare parts kit that ships with the pump gives you the wear components on hand, so replacements are available whenever the time comes.
A wet-end inspection is typically needed every 5-10 years under normal Cyprus water conditions.
CGP Solar covers service call-outs in every district.
CGP Solar handles service visits across Paphos, Limmasol, Nicosia, Larnaka ans Famagusta districts.
Hybsun’s standard 2-year manufacturer warranty.
The Hybsun 4USH2200-87-20H hybrid solar well pump is CE-certified (European Conformity — mandatory for EU/Cyprus sale). Hybsun’s manufacturing facility holds ISO 9001:2015 certification (verified on the 3US datasheet, registration HB 010 0812889).
The AC/DC hybrid controller is IP65-rated — fully dust-tight, protected against pressurised water jets — suitable for outdoor weather-exposed mounting, pump-house installation, or industrial environment placement.
